Valved NMR Tubes for Vacuum & Reduced Pressure

Completely Greaseless Fluoropolymer Assembly • Now Available for Automated Systems

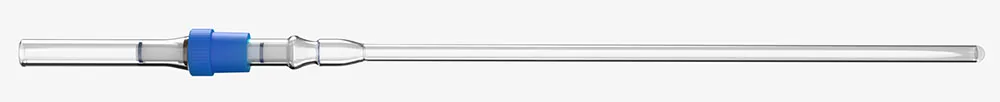

NORELL® is proud to introduce the 3mm & 5mm valved NMR tubes for vacuum & reduced pressure. Handle your NMR sample without flame-sealing your tubes. Fluoropolymer covered o-ring eliminates material incompatibilities. Completely greaseless fluoropolymer assembly, which is easy to use and to disassemble for cleaning. Includes female joint for quick attachment to your vacuum rack.

A vacuum level of 10-7 kPa (10-6 torr) can be attained with this valve. While this valve can also withstand an internal positive pressure to 500 kPa (5 bar, 72 psi), the VT Valved NMR Tube series is intended principally for vacuum work. When pressurizing internally (by heating the NMR tube, for instance), the valve must be fully closed, so that the female vacuum adapter joint (the short glass tube that slips over the top of the PTFE valve stem, sealing against the upper o-rings) cannot be used to apply or be exposed to a positive pressure.

The adjoining tables present a selection of 3mm and 5mm O.D. NMR tubes joined to the VT style valves. However, other tube diameters, lengths (such as 133mm for automated sampling), additional MHz ratings and tube materials (such as quartz) are available. Please feel free to request a quote on your custom requirements, as we are continually striving to provide the utmost service and satisfaction to our customers!

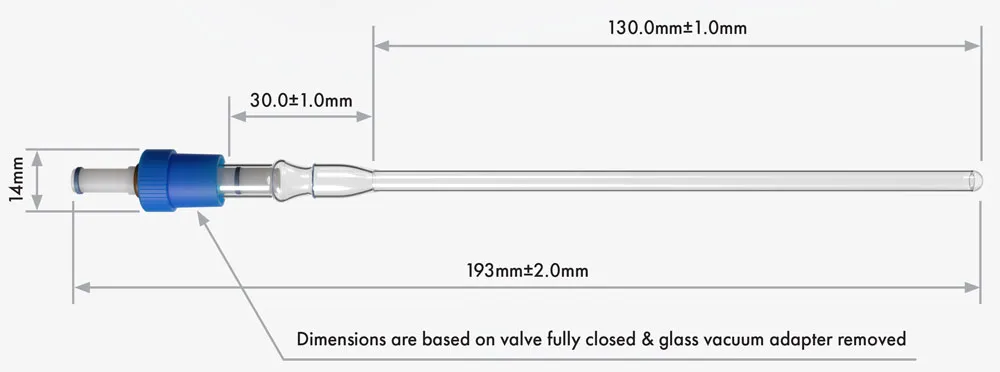

Due to the hand crafted nature of our pressure valves overall valve assembly length can vary slightly. A typical variance is 1-2mm. Overall length is based on a fully seated operating cap.

3mm Valved NMR Tubes

Item no.

MHz

Length
(mm)

I.D. (mm)
(Volume μl/cm)

S-3-500-VT-7

500

178

2.41 (46)

View In Store

S-3-500-VT-8

500

203

2.41 (46)

View In Store

S-3-600-VT-7

600

178

2.41 (46)

View In Store

S-3-600-VT-8

600

203

2.41 (46)

View In Store

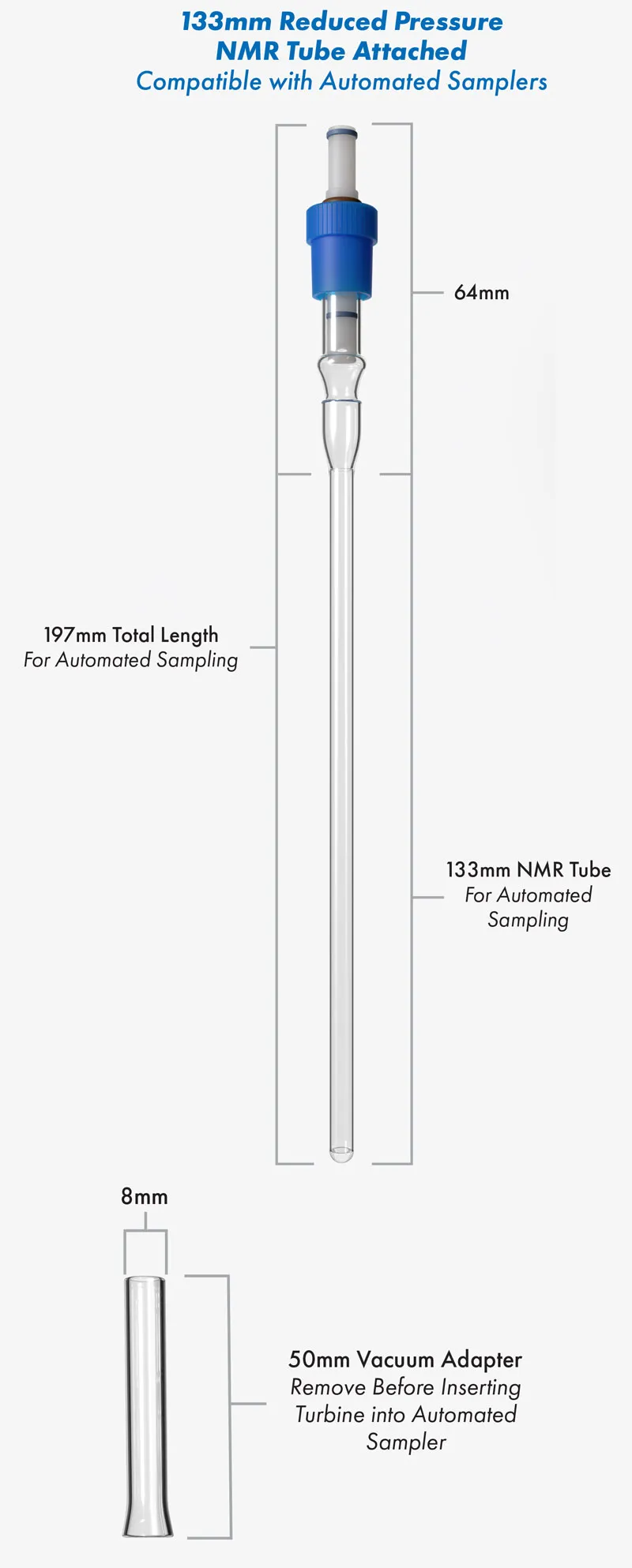

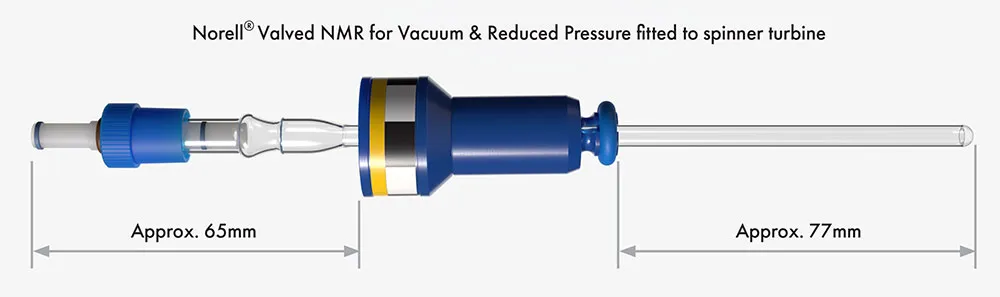

Valved NMR for Automated Sampling

S-3-500-VT-AS

500

133

2.41 (46)

View In Store

S-3-600-VT-AS

600

133

2.41 (46)

View In Store

Item Name

S-3-500-VT-7 Valved NMR Tubes For Vacuum & Reduced Pressure, 3mm, 500 Mhz, 7", 1/Pack

View In Store

Item no:

S-3-500-VT-7

MHz:

500

Length (mm):

178

I.D. mm
(Volume μL/cm):

2.41 (46)

S-3-500-VT-8 Valved NMR Tubes For Vacuum & Reduced Pressure, 3mm, 500 Mhz, 8", 1/Pack

View In Store

Item no:

S-3-500-VT-8

MHz:

500

Length (mm):

203

I.D. mm
(Volume μL/cm):

2.41 (46)

S-3-600-VT-7 Valved NMR Tubes For Vacuum & Reduced Pressure, 3mm, 600 Mhz, 7", 1/Pack

View In Store

Item no:

S-3-600-VT-7

MHz:

600

Length (mm):

178

I.D. mm
(Volume μL/cm):

2.41 (46)

S-3-600-VT-8 Valved NMR Tubes For Vacuum & Reduced Pressure, 3mm, 600 Mhz, 8", 1/Pack

View In Store

Item no:

S-3-600-VT-8

MHz:

600

Length (mm):

203

I.D. mm
(Volume μL/cm):

2.41 (46)

Valved NMR for Automated Sampling

S-3-500-VT-AS Valved NMR Tubes For Vacuum & Reduced Pressure, 3mm, 500 Mhz

View In Store

Item no:

S-3-500-VT-AS

MHz:

500

Length (mm):

133

I.D. mm
(Volume μL/cm):

2.41 (46)

S-3-600-VT-AS Valved NMR Tubes For Vacuum & Reduced Pressure, 3mm, 600 Mhz

View In Store

Item no:

S-3-600-VT-AS

MHz:

600

Length (mm):

133

I.D. mm
(Volume μL/cm):

2.41 (46)

5mm Valved NMR Tubes

Item no.

MHz

Length
(mm)

I.D. (mm)
(Volume μl/cm)

S-5-500-VT-7

500

178

4.20 (138)

View In Store

S-5-500-VT-8

500

203

4.20 (138)

View In Store

S-5-600-VT-7

600

178

4.20 (138)

View In Store

S-5-600-VT-8

600

203

4.20 (138)

View In Store

Valved NMR for Automated Sampling

S-5-500-VT-AS

500

133

4.20 (138)

View In Store

S-5-600-VT-AS

600

133

4.20 (138)

View In Store

Item Name

S-5-500-VT-7 Valved NMR Tubes For Vacuum & Reduced Pressure, 5mm, 500 Mhz, 7", 1/Pack

View In Store

Item no:

S-5-500-VT-7

MHz:

500

Length (mm):

178

I.D. mm
(Volume μL/cm):

4.20 (138)

S-5-500-VT-8 Valved NMR Tubes For Vacuum & Reduced Pressure, 5mm, 500 Mhz, 8", 1/Pack

View In Store

Item no:

S-5-500-VT-8

MHz:

500

Length (mm):

203

I.D. mm
(Volume μL/cm):

4.20 (138)

S-5-600-VT-7 Valved NMR Tubes For Vacuum & Reduced Pressure, 5mm, 600 Mhz, 7", 1/Pack

View In Store

Item no:

S-5-600-VT-7

MHz:

600

Length (mm):

178

I.D. mm
(Volume μL/cm):

4.20 (138)

S-5-600-VT-8 Valved NMR Tubes For Vacuum & Reduced Pressure, 5mm, 600 Mhz, 8", 1/Pack

View In Store

Item no:

S-5-600-VT-8

MHz:

600

Length (mm):

203

I.D. mm
(Volume μL/cm):

4.20 (138)

Valved NMR for Automated Sampling

S-5-500-VT-AS Valved NMR Tubes For Vacuum & Reduced Pressure, 5mm, 500 Mhz

View In Store

Item no:

S-5-500-VT-AS

MHz:

500

Length (mm):

133

I.D. mm
(Volume μL/cm):

4.20 (138)

S-5-600-VT-AS Valved NMR Tubes For Vacuum & Reduced Pressure, 5mm, 600 Mhz

View In Store

Item no:

S-5-600-VT-AS

MHz:

600

Length (mm):

133

I.D. mm
(Volume μL/cm):

4.20 (138)

5mm ULTRATHIN Valved NMR Tubes

Item Name

S-5-500-VT-UTW-7, Ultra-Thin Series Valved NMR Tubes, 500 MHz, 5mm, 7", 5/Pack,

View In Store

Item no:

S-5-500-VT-UTW-7

Diameter:

5

MHz:

500

Length (mm):

178

S-5-500-VT-UTW-8, Ultra-Thin Series Valved NMR Tubes, 500 MHz, 5mm, 8", 5/Pack,

View In Store

Item no:

S-5-500-VT-UTW-8

Diameter:

5

MHz:

500

Length (mm):

203

S-5-600-VT-UTW-7, Ultra-Thin Series Valved NMR Tubes, 600 MHz, 5mm, 7", 5/Pack,

View In Store

Item no:

S-5-600-VT-UTW-7

Diameter:

5

MHz:

600

Length (mm):

178

S-5-600-VT-UTW-8, Ultra-Thin Series Valved NMR Tubes, 600 MHz, 5mm, 8", 5/Pack,

View In Store

Item no:

S-5-600-VT-UTW-8

Diameter:

5

MHz:

600

Length (mm):

203

S-5-500-VT-UTW-AS, Ultra-Thin Series Valved NMR Tubes for Automated Systems, 500 MHz, 5mm, 133mm, 5/Pack,

View In Store

Item no:

S-5-600-VT-UTW-AS,

Diameter:

5

MHz:

500

Length (mm):

133

S-5-600-VT-UTW-AS, Ultra-Thin Series Valved NMR Tubes for Automated Systems, 600 MHz, 5mm, 133mm, 5/Pack,

View In Store

Item no:

S-5-600-VT-UTW-AS

Diameter:

5

MHz:

600

Length (mm):

133

Item No.

MHz

Length (mm)

I.D. (mm)
(Volume μl/cm)

S-5-500-VT-UTW-7

500

178

4.39 (144)

S-5-500-VT-UTW-8

500

203

4.39 (144)

S-5-600-VT-UTW-7

600

178

4.39 (144)

S-5-600-VT-UTW-8

600

203

4.39 (144)

S-5-500-VT-UTW-AS

500

133

4.39 (144)

S-5-600-VT-UTW-AS

600

133

4.39 (144)
