Norell®'s line of ultra-precision machined NMR tubes specifically made for the Bruker MATCH™ System feature eight different tube sizes to choose from depending on sample volume.
For added convenience, we have color-coded caps to match tube sizes, allowing quick identification of matching components.
*Recommended sample volumes by Bruker Biospin™. Use 3.0mm to 5.0mm OD tubes for 5mm RT probe, and 1.0mm to 3mm OD tubes for 3mm Cryo-Probe. 1.0mm size not recommended for dedicated 1mm Bruker Probe.
S-1-0.73-500-1
1.00+0.010-0.025
0.73 ± 0.010
100
19
5
S-1.0-500-1
1.00+0.010-0.025
0.58 ± 0.010
100
12
5
S-1.7-500-1
1.70+0.010-0.025
1.30 ± 0.010
100
45
5
S-2.0-500-1
2.00+0.010-0.025
1.60 ± 0.010
100
70
5
S-2.5-500-1
2.50+0.010-0.025
2.10 ± 0.010
100
120
5
S-3.0-500-1
2.99+0.010-0.025
2.41 ± 0.010
100
160
5
S-4.0-500-1
3.99+0.010-0.025
3.20 ± 0.010
100
310
5
S-4.25-500-1
4.25+0.010-0.025
3.43 ± 0.010
100
370
5
S-5.0-500-1
4.97+0.010-0.025
4.20 ± 0.010
100
490
5
S-1.073 Bruker MATCH Tubes, 1.0 OD, 500 MHz, 100mm Long, 5 Pack
Item no:
S-1-0.73-500-1
O.D. (mm):
1.00+0.010-0.025
I.D. (mm):
0.73 ± 0.010
Length (mm):
S-1-0.73-500-1
Sample Volume(μl)*:
19
Packed In Lots Of:
5
S-1.0 Bruker MATCH Tubes, 1.0 OD, 500 MHz, 100mm Long, 5 Pack
Item no:
S-1.0-500-1
O.D. (mm):
1.00+0.010-0.025
I.D. (mm):
0.58 ± 0.010
Length (mm):
S-1.0-500-1
Sample Volume(μl)*:
12
Packed In Lots Of:
5
S-1.7 Bruker MATCH Tubes, 1.7 OD, 500 MHz, 100mm Long, 5 Pack
Item no:
S-1.7-500-1
O.D. (mm):
1.70+0.010-0.025
I.D. (mm):
1.30 ± 0.010
Length (mm):
S-1.7-500-1
Sample Volume(μl)*:
45
Packed In Lots Of:
5
S-2.0 Bruker MATCH Tubes, 2 OD, 500 MHz, 100mm Long, 5 Pack
Item no:
S-2.0-500-1
O.D. (mm):
2.00+0.010-0.025
I.D. (mm):
1.60 ± 0.010
Length (mm):
S-2.0-500-1
Sample Volume(μl)*:
70
Packed In Lots Of:
5
S-2.5 Bruker MATCH Tubes, 2.5 OD, 500 MHz, 100mm Long, 5 Pack
Item no:
S-2.5-500-1
O.D. (mm):
2.50+0.010-0.025
I.D. (mm):
2.10 ± 0.010
Length (mm):
S-2.5-500-1
Sample Volume(μl)*:
120
Packed In Lots Of:
5
S-3.0 Bruker MATCH Tubes, 3 OD, 500 MHz, 100mm Long, 5 Pack
Item no:
S-3.0-500-1
O.D. (mm):
2.99+0.010-0.025
I.D. (mm):
2.41 ± 0.010
Length (mm):
S-3.0-500-1
Sample Volume(μl)*:
160
Packed In Lots Of:
5
S-4.0 Bruker MATCH Tubes, 4.0 OD, 500 MHz, 100mm Long, 5 Pack
Item no:
S-4.0-500-1
O.D. (mm):
3.99+0.010-0.025
I.D. (mm):
3.20 ± 0.010
Length (mm):
S-4.0-500-1
Sample Volume(μl)*:
310
Packed In Lots Of:
5
S-4.25 Bruker MATCH Tubes, 4.25 OD, 500 MHz, 100mm Long, 5 Pack
Item no:
S-4.25-500-1
O.D. (mm):
4.25+0.010-0.025
I.D. (mm):
3.43 ± 0.010
Length (mm):
S-4.25-500-1
Sample Volume(μl)*:
370
Packed In Lots Of:
5
S-5.0 Bruker MATCH Tubes, 5.0 OD, 500 MHz, 100mm Long, 5 Pack
Item no:
S-5.0-500-1
O.D. (mm):
4.97+0.010-0.025
I.D. (mm):
4.20 ± 0.010
Length (mm):
S-5.0-500-1
Sample Volume(μl)*:
490
Packed In Lots Of:
5

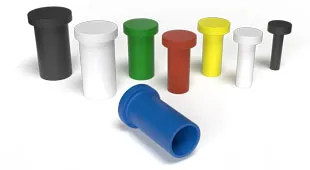

Are color coded by tube size, and correspond to the color of the tube clamp in the MATCH™ Insert Assembly.

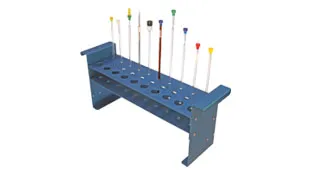

Offers convenient and secure bench top placement of MATCH™ NMR tubes, tube holders, and Bruker spinner turbines
