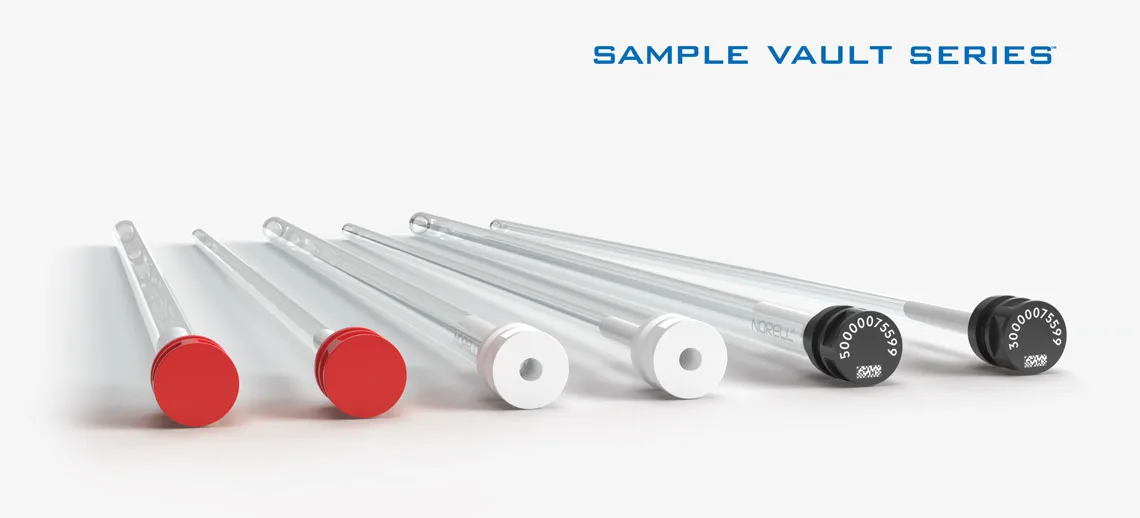

Sample Vault Series

Sample Vault Series™ NMR Tubes

An Integrated Closure System • Now Available in Ultra-Thin Wall • Ultra-Thin Custom Quote Button Below

Our Sample Vault Series™ NMR tubes with Sample Vault™ caps (U.S. Patent No. 8,054,080) are engineered for the new generation of high-throughput lab automation systems, including Bruker SampleJet™. Designed for use with 96 position carriers using 103.5mm (about 4”) long NMR tubes with open port caps, or 178mm long NMR tubes with closed port caps. Sample Vault™ caps have superior holding and sealing capabilities which eliminate cap/tube failure in your instrument. Our patented design incorporates a white band positioned on the NMR tube that aligns with the base of the cap, indicating a properly locked position. When used together, our Sample Vault™ cap and Sample Vault Series™ tube form an integrated closure system for fail-safe delivery of your sample into the magnet. We offer Sample Vault Series™ tubes in both 3mm & 5mm for use up to 700 MHz and up to 950 MHz. Our proven quality and innovative engineering speaks for itself.

• Engineered for a new generation of high-throughput lab automation systems, such as the SampleJet™ system from Bruker.
‍
• Two precision types available for up to 700 MHz and 950 MHz spectrometers.
‍
• Superior Sample Vault™ cap (U.S. Patent No.8,054,080) attaches semi-permanently for multiple uses and for critical applications.
‍
• Choice of two Sample Vault™ cap styles: either closed port or open port, giving you the ultimate in choice of sample sealing.
‍
• Closures are available to seal the Sample Vault™ Open Port caps. They are made of a soft, resilient silicone rubber that forms a very effective seal, with a high degree of inertness, solvent resistance and high temperature capability (up to 200°C). The closures are easily removed, and may be trimmed to length with a knife blade or scissors.
‍
• Safe for cold refrigeration storage, works with cryo-probes and variable temperature studies.

Download Product Information Sheet

Sample Vault Series™ NMR Tube & Cap Specifications

Packed in Lots of 96 with Caps. Choose Open or Closed Port. Products with check marks are shipped in our biopolymer tube rack.

Item no.

MHz Rating

Cap
Type

Cap
Color

O.D.
(mm)

I.D.
(mm)

Wall Size
(mm)

Concentricity

Camber

Length
(mm)

Sample Vault Tube Rack

SVCP-5-103.5-96PK

Up to 700 MHz

Uncoded Closed

Red

5

~4.24

0.38

40 μm

60 μm

103.5

SVOP-5-103.5-96PK

Up to 900 MHz

Coded Open

Black

5

~4.24

0.38

40 μm

60 μm

103.5

SVCP-5-178-96PK

Up to 700 MHz

Uncoded Closed

Black

5

~4.24

0.38

40 μm

60 μm

178

SVCP-3-103.5-96PK

Up to 700 MHz

Uncoded Closed

Red

3

~4.24

0.38

40 μm

60 μm

103.5

SVOP-3-103.5-96PK

Up to 900 MHz

Coded Open

Black

3

~4.24

0.38

40 μm

60 μm

103.5

SVCP-3-178-96PK

Up to 700 MHz

Uncoded Closed

Black

3

~4.24

0.38

40 μm

60 μm

178

SVCP-Super-5-103.5-96PK

Up to 950 MHz

Uncoded Closed

Red

5

~4.24

0.38

20 μm

30 μm

103.5

SVOP-Super-5-103.5-96PK

Up to 950 MHz

Uncoded Open

White

5

~4.24

0.38

20 μm

30 μm

103.5

SVCP-Super-5-178-96PK

Up to 950 MHz

Uncoded Closed

Red

5

~4.24

0.38

20 μm

30 μm

178

SVOP-Super-5-178-96PK

Up to 950 MHz

Uncoded Open

White

5

~4.24

0.38

20 μm

30 μm

178

SVCP-Super-3-103.5-96PK

Up to 950 MHz

Uncoded Closed

Red

3

~4.24

0.38

20 μm

30 μm

103.5

SVOP-Super-3-103.5-96PK

Up to 950 MHz

Uncoded Open

White

3

~4.24

0.38

20 μm

30 μm

103.5

SVCP-Super-3-178-96PK

Up to 950 MHz

Uncoded Closed

Red

3

~4.24

0.38

20 μm

30 μm

178

SVOP-Super-3-178-96PK

Up to 950 MHz

Uncoded Open

White

3

~4.24

0.38

20 μm

30 μm

178

SVOP-1-103.5-96PK

Up to 900 MHz

Coded Open

Black

1

~4.24

0.38

40 μm

60 μm

103.5

SVOP-1.7-103.5-96PK

Up to 900 MHz

Coded Open

Gray

1.7

~4.24

0.38

40 μm

60 μm

103.5

Item Name

SVCP-5-103.5 Sample Vault Series NMR Tubes For Automated Sample Tube System, 5 mm O.D., 103.55 mm Long, Up to 700 MHz, 96/Pack, Includes CLOSED PORT Sample Vault Caps

Item no:

SVCP-5-103.5-96PK

MHz Rating:

Up to 700 MHz

Cap Type:

Uncoded Closed

Cap Color:

Red

O.D. (mm):

5

I.D. (mm):

~4.24

Wall Size (mm):

0.38

Concentricity:

40 μm

Camber:

60 μm

Length (mm):

103.5

Sample Vault Tube Rack:

Not Included

SVOP-5-103.5 Sample Vault Series NMR Tubes For Automated Sample Tube System, 5 mm O.D., 103.55 mm Long, Up to 900 MHz, 96/Pack, Includes OPEN PORT Sample Vault Caps

Item no:

SVOP-5-103.5-96PK

MHz Rating:

Up to 900 MHz

Cap Type:

Coded Open

Cap Color:

Black

O.D. (mm):

5

I.D. (mm):

~4.24

Wall Size (mm):

0.38

Concentricity:

40 μm

Camber:

60 μm

Length (mm):

103.5

Sample Vault Tube Rack:

Included

SVCP-5-178 Sample Vault Series NMR Tubes For Automated Sample Tube System, 5 mm O.D., 178 mm Long, Up to 700 MHz, 96/Pack, Includes CLOSED PORT Sample Vault Caps

Item no:

SVCP-5-178-96PK

MHz Rating:

Up to 700 MHz

Cap Type:

Uncoded Closed

Cap Color:

Black

O.D. (mm):

5

I.D. (mm):

~4.24

Wall Size (mm):

0.38

Concentricity:

40 μm

Camber:

60 μm

Length (mm):

178

Sample Vault Tube Rack:

Not Included

SVCP-3-103.5 Sample Vault Series NMR Tubes For Automated Sample Tube System, 3 mm O.D., 103.5 mm Long, Up to 700 MHz, 96/Pack, Includes CLOSED PORT Sample Vault Caps

Item no:

SVCP-3-103.5-96PK

MHz Rating:

Up to 700 MHz

Cap Type:

Uncoded Closed

Cap Color:

Red

O.D. (mm):

3

I.D. (mm):

~4.24

Wall Size (mm):

0.38

Concentricity:

40 μm

Camber:

60 μm

Length (mm):

103.5

Sample Vault Tube Rack:

Not Included

SVOP-3-103.5 Sample Vault Series NMR Tubes For Automated Sample Tube System, 3 mm O.D., 103.5 mm Long, Up to 900 MHz, 96/Pack, Includes OPEN PORT Sample Vault Caps

Item no:

SVOP-3-103.5-96PK

MHz Rating:

Up to 900 MHz

Cap Type:

Coded Open

Cap Color:

Black

O.D. (mm):

3

I.D. (mm):

~4.24

Wall Size (mm):

0.38

Concentricity:

40 μm

Camber:

60 μm

Length (mm):

103.5

Sample Vault Tube Rack:

Included

SVCP-3-178 Sample Vault Series NMR Tubes For Automated Sample Tube System, 3 mm O.D., 178 mm Long, Up to 700 MHz, 96/Pack, Includes CLOSED PORT Sample Vault Caps

Item no:

SVCP-3-178-96PK

MHz Rating:

Up to 700 MHz

Cap Type:

Uncoded Closed

Cap Color:

Black

O.D. (mm):

3

I.D. (mm):

~4.24

Wall Size (mm):

0.38

Concentricity:

40 μm

Camber:

60 μm

Length (mm):

178

Sample Vault Tube Rack:

Not Included

SVCP-Super-5-103.5 Sample Vault Series NMR Tubes For Automated Sample Tube System, 5 mm O.D., 103.55 mm Long, Up to 950 MHz, 96/Pack, Includes CLOSED PORT Sample Vault Caps

Item no:

SVCP-Super-5-103.5-96PK

MHz Rating:

Up to 950 MHz

Cap Type:

Uncoded Closed

Cap Color:

Red

O.D. (mm):

5

I.D. (mm):

~4.24

Wall Size (mm):

0.38

Concentricity:

20 μm

Camber:

30 μm

Length (mm):

103.5

Sample Vault Tube Rack:

Not Included

SVOP-Super-5-103.5 Sample Vault Series NMR Tubes For Automated Sample Tube System, 5 mm O.D., 103.55 mm Long, Up to 950 MHz, 96/Pack, Includes OPEN PORT Sample Vault Caps

Item no:

SVOP-Super-5-103.5-96PK

MHz Rating:

Up to 950 MHz

Cap Type:

Uncoded Open

Cap Color:

White

O.D. (mm):

5

I.D. (mm):

~4.24

Wall Size (mm):

0.38

Concentricity:

20 μm

Camber:

30 μm

Length (mm):

103.5

Sample Vault Tube Rack:

Not Included

SVCP-Super-5-178 Sample Vault Series NMR Tubes For Automated Sample Tube System, 5 mm O.D., 178 mm Long, Up to 950 MHz, 96/Pack, Includes CLOSED PORT Sample Vault Caps

Item no:

SVCP-Super-5-178-96PK

MHz Rating:

Up to 950 MHz

Cap Type:

Uncoded Closed

Cap Color:

Red

O.D. (mm):

5

I.D. (mm):

~4.24

Wall Size (mm):

0.38

Concentricity:

20 μm

Camber:

30 μm

Length (mm):

178

Sample Vault Tube Rack:

Not Included

SVOP-Super-5-178 Sample Vault Series NMR Tubes For Automated Sample Tube System, 5 mm O.D., 178 mm Long, Up to 950 MHz, 96/Pack, Includes OPEN PORT Sample Vault Caps

Item no:

SVOP-Super-5-178-96PK

MHz Rating:

Up to 950 MHz

Cap Type:

Uncoded Open

Cap Color:

White

O.D. (mm):

5

I.D. (mm):

~4.24

Wall Size (mm):

0.38

Concentricity:

20 μm

Camber:

30 μm

Length (mm):

178

Sample Vault Tube Rack:

Not Included

SVCP-Super-3-103.5 Sample Vault Series NMR Tubes For Automated Sample Tube System, 3 mm O.D., 103.55 mm Long, Up to 950 MHz, 96/Pack, Includes CLOSED PORT Sample Vault Caps

Item no:

SVCP-Super-3-103.5-96PK

MHz Rating:

Up to 950 MHz

Cap Type:

Uncoded Closed

Cap Color:

Red

O.D. (mm):

3

I.D. (mm):

~4.24

Wall Size (mm):

0.38

Concentricity:

20 μm

Camber:

30 μm

Length (mm):

103.5

Sample Vault Tube Rack:

Not Included

SVOP-Super-3-103.5 Sample Vault Series NMR Tubes For Automated Sample Tube System, 3 mm O.D., 103.55 mm Long, Up to 950 MHz, 96/Pack, Includes OPEN PORT Sample Vault Caps

Item no:

SVOP-Super-3-103.5-96PK

MHz Rating:

Up to 950 MHz

Cap Type:

Uncoded Open

Cap Color:

White

O.D. (mm):

3

I.D. (mm):

~4.24

Wall Size (mm):

0.38

Concentricity:

20 μm

Camber:

30 μm

Length (mm):

103.5

Sample Vault Tube Rack:

Not Included

SVCP-Super-3-178 Sample Vault Series NMR Tubes For Automated Sample Tube System, 3 mm O.D., 178 mm Long, Up to 950 MHz, 96/Pack, Includes CLOSED PORT Sample Vault Caps

Item no:

SVCP-Super-3-178-96PK

MHz Rating:

Up to 950 MHz

Cap Type:

Uncoded Closed

Cap Color:

Red

O.D. (mm):

3

I.D. (mm):

~4.24

Wall Size (mm):

0.38

Concentricity:

20 μm

Camber:

30 μm

Length (mm):

178

Sample Vault Tube Rack:

Not Included

SVOP-Super-3-178 Sample Vault Series NMR Tubes For Automated Sample Tube System, 3 mm O.D., 178 mm Long, Up to 950 MHz, 96/Pack, Includes OPEN PORT Sample Vault Caps

Item no:

SVOP-Super-3-178-96PK

MHz Rating:

Up to 950 MHz

Cap Type:

Uncoded Open

Cap Color:

White

O.D. (mm):

3

I.D. (mm):

~4.24

Wall Size (mm):

0.38

Concentricity:

20 μm

Camber:

30 μm

Length (mm):

178

Sample Vault Tube Rack:

Not Included

SVOP-1-103.5 Sample Vault Series NMR Tubes For Automated Sample Tube System, 1 mm O.D., 103.5 mm Long, Up to 900 MHz, 96/Pack, Includes OPEN PORT Sample Vault Caps

Item no:

SVOP-1-103.5-96PK

MHz Rating:

Up to 900 MHz

Cap Type:

Coded Open

Cap Color:

Black

O.D. (mm):

1

I.D. (mm):

~4.24

Wall Size (mm):

0.38

Concentricity:

40 μm

Camber:

60 μm

Length (mm):

103.5

Sample Vault Tube Rack:

Included

SVOP-1.7-103.5 Sample Vault Series NMR Tubes For Automated Sample Tube System, 1.7 mm O.D., 103.5 mm Long, Up to 900 MHz, 96/Pack, Includes OPEN PORT Sample Vault Caps

Item no:

SVOP-1.7-103.5-96PK

MHz Rating:

Up to 900 MHz

Cap Type:

Coded Open

Cap Color:

Gray

O.D. (mm):

1.7

I.D. (mm):

~4.24

Wall Size (mm):

0.38

Concentricity:

40 μm

Camber:

60 μm

Length (mm):

103.5

Sample Vault Tube Rack:

Included

Medium Wall and Heavy Wall Sample Vault Series™ NMR Tubes

Packed in Lots of 5 with Caps. Choose Open or Closed Port.

Item no.

MHz Rating

Cap
Type

O.D.
(mm)

I.D.
(mm)

Wall Size
(mm)

Concentricity

Camber

Length
(mm)

SVCP-Super-5-MW-103.5-5

Up to 950 MHz

Uncoded Closed

4.97 ± 0.013

3.43 ± 0.025

0.8

20 μm

30 μm

103.5

SVOP-Super-5-MW-103.5-5

Up to 950 MHz

Uncoded Open

4.97 ± 0.013

3.43 ± 0.025

0.8

20 μm

30 μm

103.5

SVCP-Super-5-HW-103.5-5

Up to 950 MHz

Uncoded Closed

4.97 ± 0.013

2.20 ± 0.025

1.4

20 μm

30 μm

103.5

SVOP-Super-5-HW-103.5-5

Up to 950 MHz

Uncoded Open

4.97 ± 0.013

2.20 ± 0.025

1.4

20 μm

30 μm

103.5

Item Name

SVCP-Super-5-MW-103.5 Sample Vault Series MEDIUM Wall NMR Tubes For Automated Sample Tube System, 5 mm O.D., 103.55 mm Long, Up to 950 MHz, 5/Pack, Includes CLOSED PORT Sample Vault Caps

Item no:

SVCP-Super-5-MW-103.5-5

MHz Rating:

Up to 950 MHz

Cap Type:

Uncoded Closed

Cap Color:

White

O.D. (mm):

4.97 ± 0.013

I.D. (mm):

3.43 ± 0.025

Wall Size (mm):

0.8

Concentricity:

20 μm

Camber:

30 μm

Length (mm):

103.5

Sample Vault Tube Rack:

Not Included

SVOP-Super-5-MW-103.5 Sample Vault Series MEDIUM Wall NMR Tubes For Automated Sample Tube System, 5 mm O.D., 103.55 mm Long, Up to 950 MHz, 5/Pack, Includes OPEN PORT Sample Vault Caps

Item no:

SVOP-Super-5-MW-103.5-5

MHz Rating:

Up to 950 MHz

Cap Type:

Uncoded Open

Cap Color:

White

O.D. (mm):

4.97 ± 0.013

I.D. (mm):

3.43 ± 0.025

Wall Size (mm):

0.8

Concentricity:

20 μm

Camber:

30 μm

Length (mm):

103.5

Sample Vault Tube Rack:

Not Included

SVCP-Super-5-HW-103.5 Sample Vault Series HEAVY Wall NMR Tubes For Automated Sample Tube System, 5 mm O.D., 103.55 mm Long, Up to 950 MHz, 5/Pack, Includes CLOSED PORT Sample Vault Caps

Item no:

SVCP-Super-5-HW-103.5-5

MHz Rating:

Up to 950 MHz

Cap Type:

Uncoded Closed

Cap Color:

White

O.D. (mm):

4.97 ± 0.013

I.D. (mm):

2.20 ± 0.025

Wall Size (mm):

1.4

Concentricity:

20 μm

Camber:

30 μm

Length (mm):

103.5

Sample Vault Tube Rack:

Not Included

SVOP-Super-5-HW-103.5 Sample Vault Series HEAVY Wall NMR Tubes For Automated Sample Tube System, 5 mm O.D., 103.55 mm Long, Up to 950 MHz, 5/Pack, Includes OPEN PORT Sample Vault Caps

Item no:

SVOP-Super-5-HW-103.5-5

MHz Rating:

Up to 950 MHz

Cap Type:

Uncoded Open

Cap Color:

White

O.D. (mm):

4.97 ± 0.013

I.D. (mm):

2.20 ± 0.025

Wall Size (mm):

1.4

Concentricity:

20 μm

Camber:

30 μm

Length (mm):

103.5

Sample Vault Tube Rack:

Not Included

Closed Port Sample Vault™ Caps

Packed in Lots of 96.

Item no.

Cap Type

Cap Color

Size (mm)

SVCP-SAMPLEVAULT-3-96PK

Uncoded Closed Port

Red

3 mm

SVCP-SAMPLEVAULT-5-96PK

Uncoded Closed Port

Red

5 mm

SVCP-CC-SAMPLEVAULT-3-96PK-BO

Coded Closed Port

Black

3 mm

SVCP-CC-SAMPLEVAULT-5-96PK-BO

Coded Closed Port

Black

5 mm

Item Name

3mm CLOSED Port Red Sample Vault Caps For Automated Sample Tube System, 96/Pack - U.S. PATENT NO. 8,054,080

Item no:

SVCP-SAMPLEVAULT-3-96PK

Cap Type:

Uncoded Closed Port

Cap Color:

Red

Size (mm):

3 mm

5mm CLOSED Port Red Sample Vault Caps For Automated Sample Tube System, 96/Pack - U.S. PATENT NO. 8,054,080

Item no:

SVCP-SAMPLEVAULT-5-96PK

Cap Type:

Uncoded Closed Port

Cap Color:

Red

Size (mm):

5 mm

3mm CLOSED Port black Sample Vault Caps For Automated Sample Tube System, 96/Pack - U.S. PATENT NO. 8,054,080

Item no:

SVCP-CC-SAMPLEVAULT-3-96PK-BO

Cap Type:

Coded Closed Port

Cap Color:

Black

Size (mm):

3 mm

5mm CLOSED Port black Sample Vault Caps For Automated Sample Tube System, 96/Pack - U.S. PATENT NO. 8,054,080

Item no:

SVCP-CC-SAMPLEVAULT-5-96PK-BO

Cap Type:

Coded Closed Port

Cap Color:

Black

Size (mm):

5 mm

Closures to Seal Sample Vault™ Open Port Caps

Item no.

Description

Cap Color

Packed in Lots of

SVC-SAMPLEVAULT-SRS-50PK

Tapered Silicone Rubber Plug

Clear Translucent

50

SVC-SAMPLEVAULT-SRS-100PK

Tapered Silicone Rubber Plug

Clear Translucent

100

Item Name

Clear Translucent Tapered Silicone Rubber Plug, 50/Pack

Item no:

SVC-SAMPLEVAULT-SRS-50PK

Description:

Tapered Silicone Rubber Plug

Color:

Clear Translucent

Packed in Lots of:

50

Clear Translucent Tapered Silicone Rubber Plug, 100/Pack

Item no:

SVC-SAMPLEVAULT-SRS-100PK

Description:

Tapered Silicone Rubber Plug

Color:

Clear Translucent

Packed in Lots of:

100

Sample Vault™ Series Ultra-Thin Wall Quote

1001 Innovation Drive
PO Box 1707
Morganton, NC 28680
USAPhone: +1 828 584 2600
Fax: +1 828 584 2604
‍
Copyright ©2023 Norell®

Thank you! Your submission has been received!

Oops! Something went wrong while submitting the form.
Please refresh and try again.
