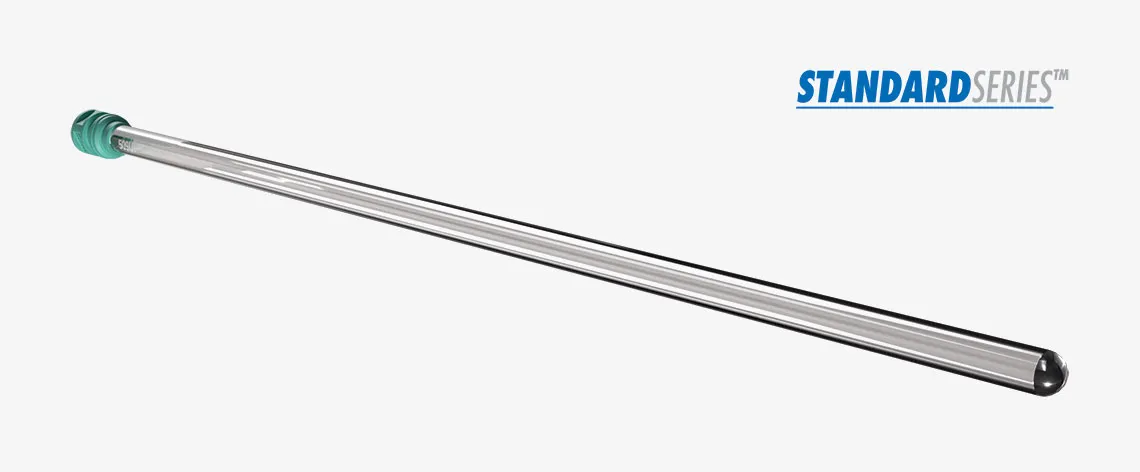

Standard Series™ NMR Sample Tubes

For Large Temperature Variations • Now Available in Ultra-Thin Wall • Ultra-Thin Custom Quote Button Below

Our Standard Series NMR tubes are manufactured out of ASTM Type 1 Class B glass, commonly referred to as N-51A. Applications that are suited for using this type of glass are routine NMR where samples are run under room temperature with no thermal gradients. It is therefore not recommended to fuse this glass with standard vacuum manifolds and the like, since these are generally made out of Type 1 Class A glass. Each NMR tube is checked for concentricity and camber specifications utilizing the latest computer technology. At Norell® we have taken NMR tube manufacturing to a new level of science.

NorLoc™ Generation II Security Caps

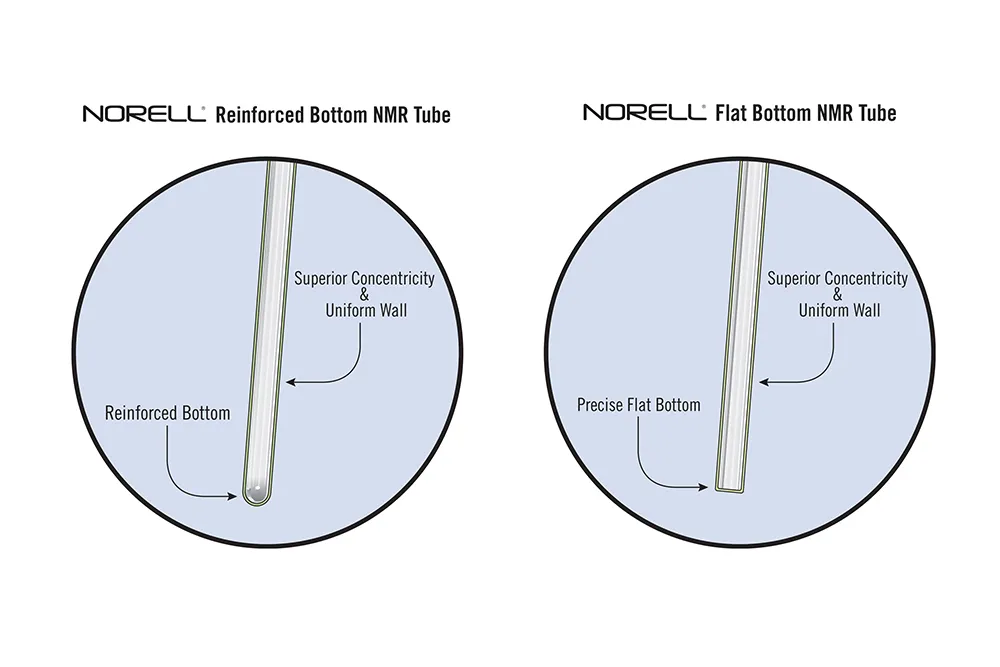

Through our advanced manufacturing process, the NMR tube bottoms are uniformly hemispherical and consistent, thereby minimizing shimming and susceptibility differences among samples. This uniformity extends throughout the wall thickness of the tubes, maximizing the concentricity among tubes and lots. This translates to more consistent placement of the contained sample volumes in today’s advanced, highly homogeneous, high field NMR magnets. NMR tubes are manufactured with round bottoms and are available with flat bottoms upon request. We manufacture all NMR tubes in any length upon request. Standard Series™ is available with Ultra-Thin wall. NorLoc™ caps sold separately, Standard Series™ NMR tubes ship with economy caps.

Download Product Information Sheet

5mm Ultra-Precision, High-Precision & Precision Sample Tubes

Item no.

MHz

O.D.
(mm)

I.D.
(mm)

Concentricity
(mm)

Camber
±(mm)

Length
(mm)

Packed in
Lots of

5020-USP-7

1000

4.97 ± 0.004

4.20 ± 0.006

0.003

0.004

178

5

5020-USP-8

1000

4.97 ± 0.004

4.20 ± 0.006

0.003

0.004

203

5

5010-USP-7

750

4.97 ± 0.005

4.20 ± 0.012

0.004

0.005

178

5

5010-USP-8

750

4.97 ± 0.005

4.20 ± 0.012

0.004

0.005

203

5

509-UP-7

600

4.97 ± 0.006

4.20 ± 0.012

0.004

0.006

178

5

509-UP-8

600

4.97 ± 0.006

4.20 ± 0.012

0.004

0.006

203

5

508-UP-7

500

4.97 ± 0.013

4.20 ± 0.025

0.005

0.013

178

5

508-UP-8

500

4.97 ± 0.013

4.20 ± 0.025

0.005

0.013

203

5

507-HP-7

400

4.97 ± 0.013

4.20 ± 0.025

0.007

0.019

178

5

507-HP-8

400

4.97 ± 0.013

4.20 ± 0.025

0.007

0.019

203

5

506-P-7

300

4.97 ± 0.025

4.20 ± 0.025

0.007

0.025

178

25

506-P-8

300

4.97 ± 0.025

4.20 ± 0.025

0.007

0.025

203

25

XR-55™-7

300

4.97 ± 0.025

4.20 ± 0.025

0.010

0.038

178

25

XR-55™-8

300

4.97 ± 0.025

4.20 ± 0.025

0.010

0.038

203

25

505-P-7

200

4.97 ± 0.030

4.20 ± 0.030

0.010

0.040

178

25

505-P-8

200

4.97 ± 0.030

4.20 ± 0.030

0.010

0.040

203

25

Item Name

5020-USP-8 Standard Series NMR Tube, 5mm, 1000 MHz, 8", 5/Pack

Item no:

5020-USP-8

MHz:

1000

O.D. (mm):

4.97 ± 0.004

I.D. (mm):

4.20 ± 0.006

Concentricity (mm):

0.003

Camber ±(mm):

0.004

Length (mm):

203

Packed in Lots of:

5

5020-USP-7 Standard Series NMR Tube, 5mm, 1000 MHz, 7", 5/Pack

Item no:

5020-USP-7

MHz:

1000

O.D. (mm):

4.97 ± 0.004

I.D. (mm):

4.20 ± 0.006

Concentricity (mm):

0.003

Camber ±(mm):

0.004

Length (mm):

178

Packed in Lots of:

5

5010-USP-8 Standard Series NMR Tube, 5mm, 750 MHz, 8", 5/Pack

Item no:

5010-USP-8

MHz:

750

O.D. (mm):

4.97 ± 0.005

I.D. (mm):

4.20 ± 0.012

Concentricity (mm):

0.004

Camber ±(mm):

0.005

Length (mm):

203

Packed in Lots of:

5

5010-USP-7 Standard Series NMR Tube, 5mm, 750 MHz, 7", 5/Pac

Item no:

5010-USP-7

MHz:

750

O.D. (mm):

4.97 ± 0.005

I.D. (mm):

4.20 ± 0.012

Concentricity (mm):

0.004

Camber ±(mm):

0.005

Length (mm):

178

Packed in Lots of:

5

509-UP-7 Standard Series NMR Tube, 5mm, 600 MHz, 7", 5/Pack

Item no:

509-UP-7

MHz:

600

O.D. (mm):

4.97 ± 0.006

I.D. (mm):

4.20 ± 0.012

Concentricity (mm):

0.004

Camber ±(mm):

0.006

Length (mm):

178

Packed in Lots of:

5

509-UP-8 Standard Series NMR Tube, 5mm, 600 MHz, 8", 5/Pack

Item no:

509-UP-8

MHz:

600

O.D. (mm):

4.97 ± 0.006

I.D. (mm):

4.20 ± 0.012

Concentricity (mm):

0.004

Camber ±(mm):

0.006

Length (mm):

203

Packed in Lots of:

5

507-HP-7 Standard Series NMR Tube, 5mm, 400 MHz, 7", 5/Pack

Item no:

507-HP-7

MHz:

400

O.D. (mm):

4.97 ± 0.013

I.D. (mm):

4.20 ± 0.025

Concentricity (mm):

0.007

Camber ±(mm):

0.019

Length (mm):

178

Packed in Lots of:

5

507-HP-8 Standard Series NMR Tube, 5mm, 400 MHz, 8", 5/Pack

Item no:

507-HP-8

MHz:

400

O.D. (mm):

4.97 ± 0.013

I.D. (mm):

4.20 ± 0.025

Concentricity (mm):

0.007

Camber ±(mm):

0.019

Length (mm):

203

Packed in Lots of:

5

508-UP-8 Standard Series NMR Tube, 5mm, 500 MHz, 8", 5/Pack

Item no:

508-UP-8

MHz:

500

O.D. (mm):

4.97 ± 0.013

I.D. (mm):

4.20 ± 0.025

Concentricity (mm):

0.005

Camber ±(mm):

0.013

Length (mm):

203

Packed in Lots of:

5

508-UP-7 Standard Series NMR Tube, 5mm, 500 MHz, 7", 5/Pack

Item no:

508-UP-7

MHz:

500

O.D. (mm):

4.97 ± 0.013

I.D. (mm):

4.20 ± 0.025

Concentricity (mm):

0.005

Camber ±(mm):

0.013

Length (mm):

178

Packed in Lots of:

5

506-P-7 Standard Series NMR Tube, 5mm, 300 MHz, 7", 25/Pack

Item no:

506-P-7

MHz:

300

O.D. (mm):

4.97 ± 0.025

I.D. (mm):

4.20 ± 0.025

Concentricity (mm):

0.007

Camber ±(mm):

0.025

Length (mm):

178

Packed in Lots of:

25

506-P-8 Standard Series NMR Tube, 5mm, 300 MHz, 8", 25/Pack

Item no:

506-P-8

MHz:

300

O.D. (mm):

4.97 ± 0.025

I.D. (mm):

4.20 ± 0.025

Concentricity (mm):

0.007

Camber ±(mm):

0.025

Length (mm):

203

Packed in Lots of:

25

XR-55™-8 Standard Series NMR Tube, 5mm, 300 MHz, 8", 25/Pack

Item no:

XR-55™-8

MHz:

300

O.D. (mm):

4.97 ± 0.025

I.D. (mm):

4.20 ± 0.025

Concentricity (mm):

0.010

Camber ±(mm):

0.038

Length (mm):

203

Packed in Lots of:

25

XR-55™-7 Standard Series NMR Tube, 5mm, 300 MHz, 7", 25/Pack

Item no:

XR-55™-7

MHz:

300

O.D. (mm):

4.97 ± 0.025

I.D. (mm):

4.20 ± 0.025

Concentricity (mm):

0.010

Camber ±(mm):

0.038

Length (mm):

178

Packed in Lots of:

25

505-P-7 Standard Series NMR Tube, 5mm, 200 MHz, 7", 25/Pack

Item no:

505-P-7

MHz:

200

O.D. (mm):

4.97 ± 0.030

I.D. (mm):

4.20 ± 0.030

Concentricity (mm):

0.010

Camber ±(mm):

0.040

Length (mm):

178

Packed in Lots of:

25

505-P-8 Standard Series NMR Tube, 5mm, 200 MHz, 8", 25/Pack

Item no:

505-P-8

MHz:

200

O.D. (mm):

4.97 ± 0.030

I.D. (mm):

4.20 ± 0.030

Concentricity (mm):

0.010

Camber ±(mm):

0.040

Length (mm):

203

Packed in Lots of:

25

5mm Economy High-Throughput NMR Sample Tubes

Item no.

MHz

O.D.
(mm)

I.D.
(mm)

Concentricity
(mm)

Camber
±(mm)

Length
(mm)

Packed in
Lots of

502-7

HT-PLUS

4.97 ± 0.050

4.20 ± 0.050

0.020

0.070

178

50

502-8

HT-PLUS

4.97 ± 0.050

4.20 ± 0.050

0.020

0.070

203

50

552-7

HT-PLUS

4.97 ± 0.050

4.20 ± 0.050

0.020

0.070

178

5

552-8

HT-PLUS

4.97 ± 0.050

4.20 ± 0.050

0.020

0.070

203

5

ST500-7

HT

4.97 ± 0.070

4.20 ± 0.070

0.025

0.075

178

100

ST500-8

HT

4.97 ± 0.050

4.20 ± 0.070

0.025

0.075

203

100

ST550-7

HT

4.97 ± 0.070

4.20 ± 0.070

0.025

0.075

178

5

ST550-8

HT

4.97 ± 0.070

4.20 ± 0.070

0.025

0.075

203

5

Item Name

502-7 Standard Series HIGH THROUGHPUT PLUS NMR Tube, 5mm, 7", 50/Pack

Item no:

502-7

MHz:

HT-PLUS

O.D. (mm):

4.97 ± 0.050

I.D. (mm):

4.20 ± 0.050

Concentricity (mm):

0.020

Camber ±(mm):

0.070

Length (mm):

178

Packed in Lots of:

50

502-8 Standard Series HIGH THROUGHPUT PLUS NMR Tube, 5mm, 8", 50/Pack

Item no:

502-8

MHz:

HT-PLUS

O.D. (mm):

4.97 ± 0.050

I.D. (mm):

4.20 ± 0.050

Concentricity (mm):

0.020

Camber ±(mm):

0.070

Length (mm):

203

Packed in Lots of:

50

552-8 Standard Series HIGH THROUGHPUT PLUS NMR Tube, 5mm, 8", 5/Pack

Item no:

552-8

MHz:

HT-PLUS

O.D. (mm):

4.97 ± 0.050

I.D. (mm):

4.20 ± 0.050

Concentricity (mm):

0.020

Camber ±(mm):

0.070

Length (mm):

203

Packed in Lots of:

5

552-7 Standard Series HIGH THROUGHPUT PLUS NMR Tube, 5mm, 7", 5/Pack

Item no:

552-7

MHz:

HT-PLUS

O.D. (mm):

4.97 ± 0.050

I.D. (mm):

4.20 ± 0.050

Concentricity (mm):

0.020

Camber ±(mm):

0.070

Length (mm):

178

Packed in Lots of:

5

ST500-8 Standard Series HIGH THROUGHPUT NMR Tube, 5mm, 8", 100/Pack

Item no:

ST500-8

MHz:

HT

O.D. (mm):

4.97 ± 0.050

I.D. (mm):

4.20 ± 0.070

Concentricity (mm):

0.025

Camber ±(mm):

0.075

Length (mm):

203

Packed in Lots of:

100

ST550-7 Standard Series HIGH THROUGHPUT NMR Tube, 5mm, 7", 5/Pack

Item no:

ST550-7

MHz:

HT

O.D. (mm):

4.97 ± 0.070

I.D. (mm):

4.20 ± 0.070

Concentricity (mm):

0.025

Camber ±(mm):

0.075

Length (mm):

178

Packed in Lots of:

5

ST500-7 Standard Series HIGH THROUGHPUT NMR Tube, 5mm, 7", 100/Pack

Item no:

ST500-7

MHz:

HT

O.D. (mm):

4.97 ± 0.070

I.D. (mm):

4.20 ± 0.070

Concentricity (mm):

0.025

Camber ±(mm):

0.075

Length (mm):

178

Packed in Lots of:

100

ST550-8 Standard Series HIGH THROUGHPUT NMR Tube, 5mm, 8", 5/Pack

Item no:

ST550-8

MHz:

HT

O.D. (mm):

4.97 ± 0.070

I.D. (mm):

4.20 ± 0.070

Concentricity (mm):

0.025

Camber ±(mm):

0.075

Length (mm):

203

Packed in Lots of:

5

10mm Ultra-Precision & Precision NMR Sample Tubes

Item no.

MHz

O.D.
(mm)

I.D.
(mm)

Concentricity
(mm)

Camber
±(mm)

Length
(mm)

Packed in
Lots of

1008-UP-7

400

9.98 ± 0.013

8.76 ± 0.025

0.005

0.070

178

5

1008-UP-8

400

9.98 ± 0.013

8.76 ± 0.025

0.005

0.070

203

5

1005-P-7

300

9.98 ± 0.016

8.76 ± 0.025

0.020

0.013

178

5

1005-P-8

300

9.98 ± 0.016

8.76 ± 0.025

0.020

0.013

203

5

Item Name

1008-UP-7 Standard Series NMR Tube, 10mm, 400 MHz, 7", 5/Pack

Item no:

1008-UP-7

MHz:

400

O.D. (mm):

9.98 ± 0.013

I.D. (mm):

8.76 ± 0.025

Concentricity (mm):

0.005

Camber ±(mm):

0.070

Length (mm):

178

Packed in Lots of:

5

1008-UP-8 Standard Series NMR Tube, 10mm, 400 MHz, 8", 5/Pack

Item no:

1008-UP-8

MHz:

400

O.D. (mm):

9.98 ± 0.013

I.D. (mm):

8.76 ± 0.025

Concentricity (mm):

0.005

Camber ±(mm):

0.070

Length (mm):

203

Packed in Lots of:

5

1005-P-7 Standard Series NMR Tube, 10mm, 300 MHz, 7", 5/Pack

Item no:

1005-P-7

MHz:

300

O.D. (mm):

9.98 ± 0.016

I.D. (mm):

8.76 ± 0.025

Concentricity (mm):

0.020

Camber ±(mm):

0.013

Length (mm):

178

Packed in Lots of:

5

1005-P-8 Standard Series NMR Tube, 10mm, 300 MHz, 8", 5/Pack

Item no:

1005-P-8

MHz:

300

O.D. (mm):

9.98 ± 0.016

I.D. (mm):

8.76 ± 0.025

Concentricity (mm):

0.020

Camber ±(mm):

0.013

Length (mm):

203

Packed in Lots of:

5

10mm Economy NMR Sample Tubes

Item no.

MHz

O.D.
(mm)

I.D.
(mm)

Concentricity
(mm)

Camber
±(mm)

Length
(mm)

Packed in
Lots of

1001-7

200

9.98 ± 0.024

8.76 ± 0.025

nominal

nominal

178

100

1001-8

200

9.98 ± 0.024

8.76 ± 0.025

nominal

nominal

203

100

Item Name

1001-7 Standard Series NMR Tube, 10mm, 200 MHz, 7", 100/Pack

Item no:

1001-7

MHz:

200

O.D. (mm):

9.98 ± 0.024

I.D. (mm):

8.76 ± 0.025

Concentricity (mm):

nominal

Camber ±(mm):

nominal

Length (mm):

178

Packed in Lots of:

100

1001-8 Standard Series NMR Tube, 10mm, 200 MHz, 8", 100/Pack

Item no:

1001-8

MHz:

200

O.D. (mm):

9.98 ± 0.024

I.D. (mm):

8.76 ± 0.025

Concentricity (mm):

nominal

Camber ±(mm):

nominal

Length (mm):

203

Packed in Lots of:

100

Standard Series Ultra-Thin Wall Quote

Thank you! Your custom Ultra-Thin Standard Series quote has been sent!

Oops! Something went wrong while submitting the form.

1001 Innovation Drive
PO Box 1707
Morganton, NC 28680
USAPhone: +1 828 584 2600
Fax: +1 828 584 2604
‍
Copyright ©2023 Norell®

Thank you! Your submission has been received!

Oops! Something went wrong while submitting the form.
Please refresh and try again.
