PVDF Tubing (Polyvinylidene Fluoride)

For Applications Requiring Chemical Resistance With Low Permeability

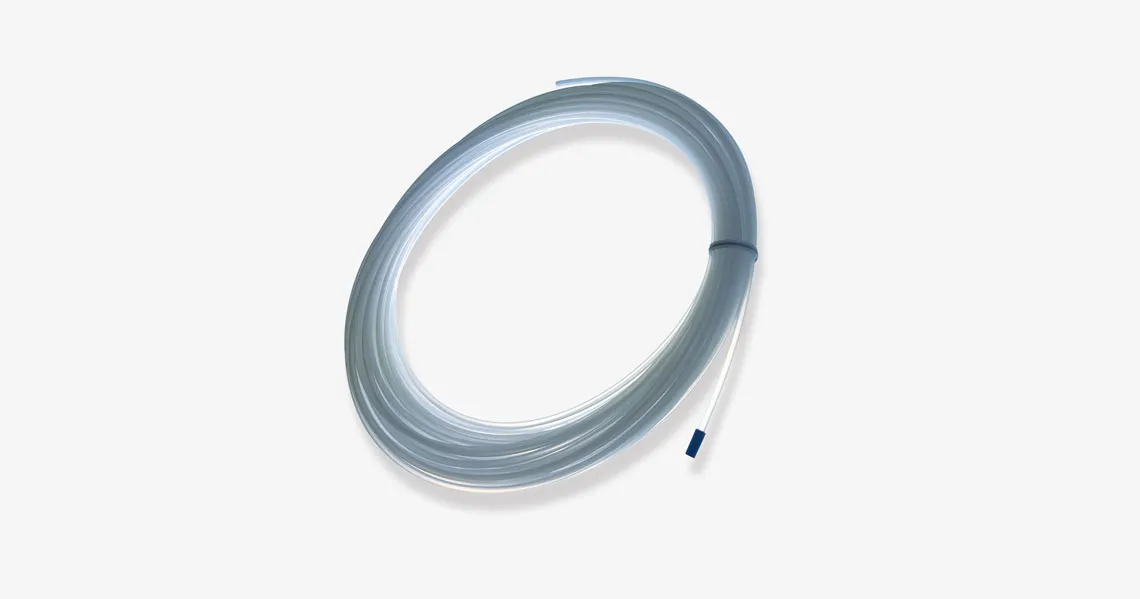

PVDF Tubing (Polyvinylidene Fluoride) is an abrasion resistant fluoropolymer suitable for use in applications requiring chemical resistance with low permeability. PVDF Tubing is often referred to by its trade name, KYNAR®, and is designed primarily for applications requiring excellent chemical resistance, high levels of purity and superior mechanical properties. PVDF Tubing is often used as a lining or protective barrier in chemical industry applications and is just as useful in ultrapure water systems and groundwater monitoring.

PVDF Tubing Offers:

  • Excellent abrasion resistance
  • Excellent resistance to creep and fatigue
  • Low permeability
  • Good chemical resistance
  • Excellent thermal stability
  • Excellent radiation resistance
  • Excellent resistance to cut-through

PVDF Tubing Applications:

Aerospace & Transportation Technology, Electronics, Components & Insulators, Chemical & Pharmaceutical Manufacturing, Food Processing, Environmental Sciences, Air Sampling, Fluid Transfer Devices, and Water Processing Systems

To Request a Quote, Call +1-828-584-2600

PVDF Industrial Wall Fractional Sizes

O.D. (in)

I.D. (in)

Wall (in)

Nominal O.D.

O.D. Tolerance
(in)

Wall
Tolerance (in)

Working Pressure*
PSIG (bar)

Burst Pressure+
PSIG(bar

Minimum Bend Radius (in)

1/8

1/16

0.031

0.125

+/- 0.004

+/- 0.003

600 (41)

3000 (207)

1/2

3/16

1/8

0.031

0.188

+/- 0.005

+/- 0.003

385 (27)

1923 (133)

1/2

1/4

3/16

0.031

0.25

+/- 0.005

+/- 0.003

280 (19)

1400 (97)

1

5/16

1/4

0.031

0.312

+/- 0.005

+/- 0.003

220 (15)

1098 (76)

1-3/4

3/8

5/16

0.031

0.375

+/- 0.005

+/- 0.003

180 (12)

902 (62)

2-1/2

Item Name

PVDF Industrial Wall Fractional Sizes, O.D. 1/8", I.D. 1/16"

O.D. (in):

1/8

I.D. (in):

1/16

Wall (in):

0.031

Nominal O.D.:

0.125

O.D.
Tolerance (in):

+/- 0.004

Wall
Tolerance (in):

+/- 0.003

Working Pressure*
PSIG (bar):

600 (41)

Burst Pressure+
PSIG(bar):

3000 (207)

Minimum Bend Radius (in):

1/2

PVDF Industrial Wall Fractional Sizes, O.D. 3/16", I.D. 1/8"

O.D. (in):

3/16

I.D. (in):

1/8

Wall (in):

0.031

Nominal O.D.:

0.188

O.D.
Tolerance (in):

+/- 0.005

Wall
Tolerance (in):

+/- 0.003

Working Pressure*
PSIG (bar):

385 (27)

Burst Pressure+
PSIG(bar):

1923 (133)

Minimum Bend Radius (in):

1/2

PVDF Industrial Wall Fractional Sizes, O.D. 1/4", I.D. 3/16"

O.D. (in):

1/4

I.D. (in):

3/16

Wall (in):

0.031

Nominal O.D.:

0.25

O.D.
Tolerance (in):

+/- 0.005

Wall
Tolerance (in):

+/- 0.003

Working Pressure*
PSIG (bar):

280 (19)

Burst Pressure+
PSIG(bar):

1400 (97)

Minimum Bend Radius (in):

1

PVDF Industrial Wall Fractional Sizes, O.D. 5/16", I.D. 1/4"

O.D. (in):

5/16

I.D. (in):

1/4

Wall (in):

0.031

Nominal O.D.:

0.312

O.D.
Tolerance (in):

+/- 0.005

Wall
Tolerance (in):

+/- 0.003

Working Pressure*
PSIG (bar):

220 (15)

Burst Pressure+
PSIG(bar):

1098 (76)

Minimum Bend Radius (in):

1-3/4

PVDF Industrial Wall Fractional Sizes, O.D. 3/8", I.D. 5/16"

O.D. (in):

3/8

I.D. (in):

5/16

Wall (in):

0.031

Nominal O.D.:

0.375

O.D.
Tolerance (in):

+/- 0.005

Wall
Tolerance (in):

+/- 0.003

Working Pressure*
PSIG (bar):

180 (12)

Burst Pressure+
PSIG(bar):

902 (62)

Minimum Bend Radius (in):

2-1/2

PVDF Heavy Wall Fractional Sizes

O.D. (in)

I.D. (in)

Wall (in)

Nominal O.D.

O.D. Tolerance
(in)

Wall
Tolerance (in)

Working Pressure*
PSIG (bar)

Burst Pressure+
PSIG(bar

Minimum Bend Radius (in)

1/4

5/32

0.047

0.25

+/- 0.005

+/- 0.003

438 (30)

2192 (151)

3/4

1/4

1/8

0.062

0.25

+/- 0.005

+/- 0.003

600 (41)

3000 (207)

1/2

3/8

1/4

0.062

0.375

+/- 0.005

+/- 0.003

385 (27)

1923 (133)

3/4

1/2

3/8

0.062

0.5

+/- 0.005

+/- 0.003

280 (19)

1400 (97)

2-1/2

5/8

1/2

0.062

0.625

+/- 0.006

+/- 0.003

220 (15)

1098 (76)

3

3/4

5/8

0.062

0.75

+/- 0.006

+/- 0.003

180 (12)

902 (62)

6

1

7/8

0.062

1

+/- 0.010

+/- 0.003

133 (9)

664 (46)

16

Item Name

PVDF Heavy Wall Fractional Sizes, O.D. 1/4", I.D. 5/32"

O.D. (in):

1/4

I.D. (in):

5/32

Wall (in):

0.047

Nominal O.D.:

0.25

O.D.
Tolerance (in):

+/- 0.005

Wall
Tolerance (in):

+/- 0.003

Working Pressure*
PSIG (bar):

438 (30)

Burst Pressure+
PSIG(bar):

2192 (151)

Minimum Bend Radius (in):

3/4

PVDF Heavy Wall Fractional Sizes, O.D. 1/4", I.D. 1/8"

O.D. (in):

1/4

I.D. (in):

1/8

Wall (in):

0.062

Nominal O.D.:

0.25

O.D.
Tolerance (in):

+/- 0.005

Wall
Tolerance (in):

+/- 0.003

Working Pressure*
PSIG (bar):

600 (41)

Burst Pressure+
PSIG(bar):

3000 (207)

Minimum Bend Radius (in):

1/2

PVDF Heavy Wall Fractional Sizes, O.D. 3/8", I.D. 1/4"

O.D. (in):

3/8

I.D. (in):

1/4

Wall (in):

0.062

Nominal O.D.:

0.375

O.D.
Tolerance (in):

+/- 0.005

Wall
Tolerance (in):

+/- 0.003

Working Pressure*
PSIG (bar):

385 (27)

Burst Pressure+
PSIG(bar):

1923 (133)

Minimum Bend Radius (in):

3/4

PVDF Heavy Wall Fractional Sizes, O.D. 1/2", I.D. 3/8"

O.D. (in):

1/2

I.D. (in):

3/8

Wall (in):

0.062

Nominal O.D.:

0.5

O.D.
Tolerance (in):

+/- 0.005

Wall
Tolerance (in):

+/- 0.003

Working Pressure*
PSIG (bar):

280 (19)

Burst Pressure+
PSIG(bar):

1400 (97)

Minimum Bend Radius (in):

2-1/2

PVDF Heavy Wall Fractional Sizes, O.D. 5/8", I.D. 1/2"

O.D. (in):

5/8

I.D. (in):

1/2

Wall (in):

0.062

Nominal O.D.:

0.625

O.D.
Tolerance (in):

+/- 0.006

Wall
Tolerance (in):

+/- 0.003

Working Pressure*
PSIG (bar):

220 (15)

Burst Pressure+
PSIG(bar):

1098 (76)

Minimum Bend Radius (in):

3

PVDF Heavy Wall Fractional Sizes, O.D. 3/4", I.D. 5/8"

O.D. (in):

3/4

I.D. (in):

5/8

Wall (in):

0.062

Nominal O.D.:

0.75

O.D.
Tolerance (in):

+/- 0.006

Wall
Tolerance (in):

+/- 0.003

Working Pressure*
PSIG (bar):

180 (12)

Burst Pressure+
PSIG(bar):

902 (62)

Minimum Bend Radius (in):

6

PVDF Heavy Wall Fractional Sizes, O.D. 1", I.D. 7/8"

O.D. (in):

1

I.D. (in):

7/8

Wall (in):

0.062

Nominal O.D.:

1

O.D.
Tolerance (in):

+/- 0.010

Wall
Tolerance (in):

+/- 0.003

Working Pressure*
PSIG (bar):

133 (9)

Burst Pressure+
PSIG(bar):

664 (46)

Minimum Bend Radius (in):

16

PVDF Metric Sizes

O.D. (mm)

I.D. (mm)

O.D./I.D.
Tolerance (mm)

O.D. (in)

I.D. (in)

O.D./I.D.
Tolerance (in)

Working Pressure*
PSIG (bar)

Burst Pressure+
PSIG(bar

Minimum Bend Radius (in)

4

2

+/- 0.11

0.157

0.078

+/- 0.004

600 (41)

3000 (207)

1/2

6

4

+/- 0.13

0.236

0.157

+/- 0.005

385 (27)

1923 (133)

1/2

8

6

+/- 0.13

0.315

0.236

+/- 0.005

280 (19)

1400 (97)

1-3/4

10

8

+/- 0.13

0.393

0.315

+/- 0.005

220 (15)

1098 (76)

2-1/2

12

10

+/- 0.15

0.472

0.393

+/- 0.006

180 (12)

902 (62)

3-1/2

Item Name

PVDF Metric Sizes, O.D. 4mm, I.D. 2mm

O.D. (mm):

4

I.D. (mm):

2

O.D./I.D.
Tolerance (mm):

+/- 0.11

O.D. (in):

0.157

I.D. (in):

0.078

O.D./I.D.
Tolerance (in):

+/- 0.004

Working Pressure*
PSIG (bar):

600 (41)

Burst Pressure+
PSIG(bar):

3000 (207)

Minimum Bend Radius (in):

1/2

PVDF Metric Sizes, O.D. 6mm, I.D. 4mm

O.D. (mm):

6

I.D. (mm):

4

O.D./I.D.
Tolerance (mm):

+/- 0.13

O.D. (in):

0.236

I.D. (in):

0.157

O.D./I.D.
Tolerance (in):

+/- 0.005

Working Pressure*
PSIG (bar):

385 (27)

Burst Pressure+
PSIG(bar):

1923 (133)

Minimum Bend Radius (in):

1/2

PVDF Metric Sizes, O.D. 8mm, I.D. 6mm

O.D. (mm):

8

I.D. (mm):

6

O.D./I.D.
Tolerance (mm):

+/- 0.13

O.D. (in):

0.315

I.D. (in):

0.236

O.D./I.D.
Tolerance (in):

+/- 0.005

Working Pressure*
PSIG (bar):

280 (19)

Burst Pressure+
PSIG(bar):

1400 (97)

Minimum Bend Radius (in):

1-3/4

PVDF Metric Sizes, O.D. 10mm, I.D. 8mm

O.D. (mm):

10

I.D. (mm):

8

O.D./I.D.
Tolerance (mm):

+/- 0.13

O.D. (in):

0.393

I.D. (in):

0.315

O.D./I.D.
Tolerance (in):

+/- 0.005

Working Pressure*
PSIG (bar):

220 (15)

Burst Pressure+
PSIG(bar):

1098 (76)

Minimum Bend Radius (in):

2-1/2

PVDF Metric Sizes, O.D. 12mm, I.D. 10mm

O.D. (mm):

12

I.D. (mm):

10

O.D./I.D.
Tolerance (mm):

+/- 0.15

O.D. (in):

0.472

I.D. (in):

0.393

O.D./I.D.
Tolerance (in):

+/- 0.006

Working Pressure*
PSIG (bar):

180 (12)

Burst Pressure+
PSIG(bar):

902 (62)

Minimum Bend Radius (in):

3-1/2

* This tubing has a safety factor of 5 to 1 (ratio of burst pressure to working pressure). This data is to be used as a guideline only. You should perform actual tests according to your specific application.

+ The following equation is for calculating burst pressure. The result from this equation is to be used as a guideline only. The calculation is at ambient room temperature. It does not factor steam pressure, altitude, etc.

B=Burst Pressure
T=Tensile Strength Values: FEP-3000 psi    PFA - 4000 psi    PTFE - 2500 psi     PVDF - 5000 psi     ETFE - 6500 psi
1 bar = 14.504 ps
