Engineered for Reliable Performance with Bruker SampleJet Systems

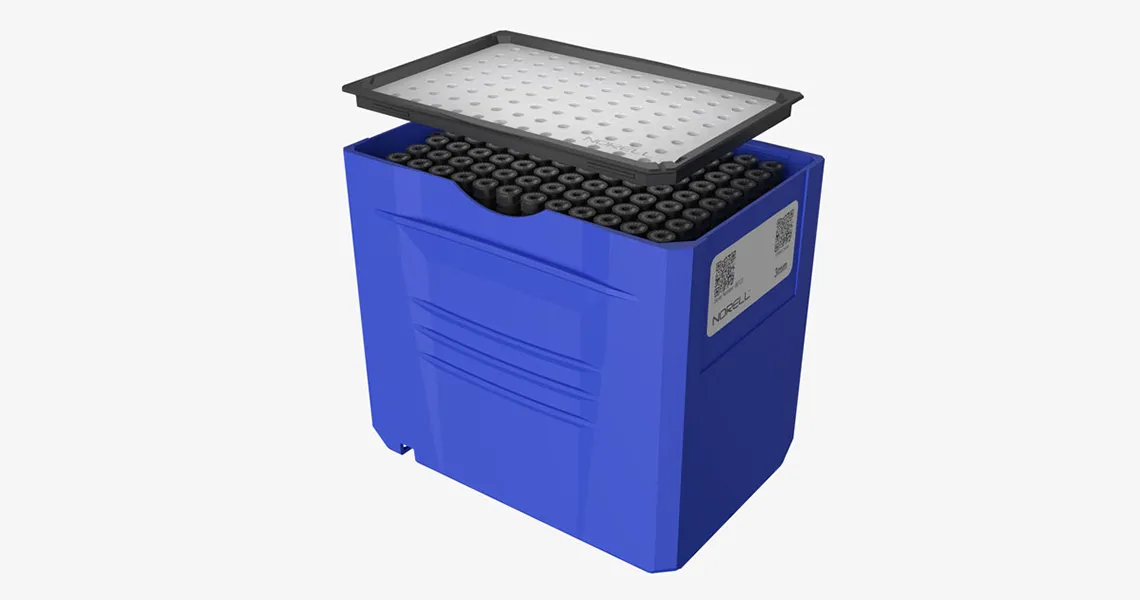

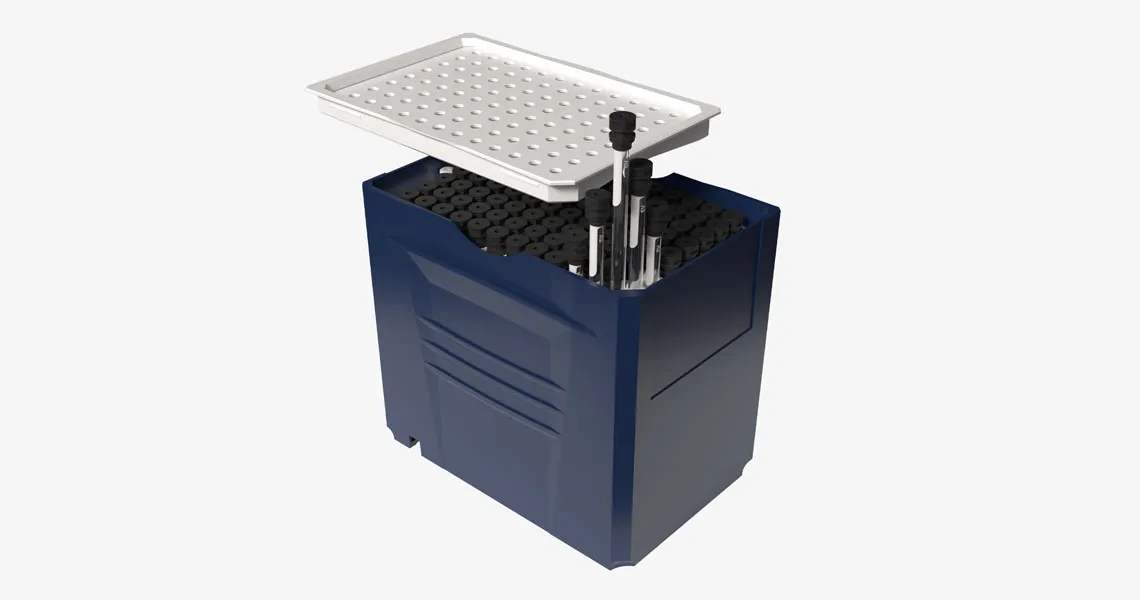

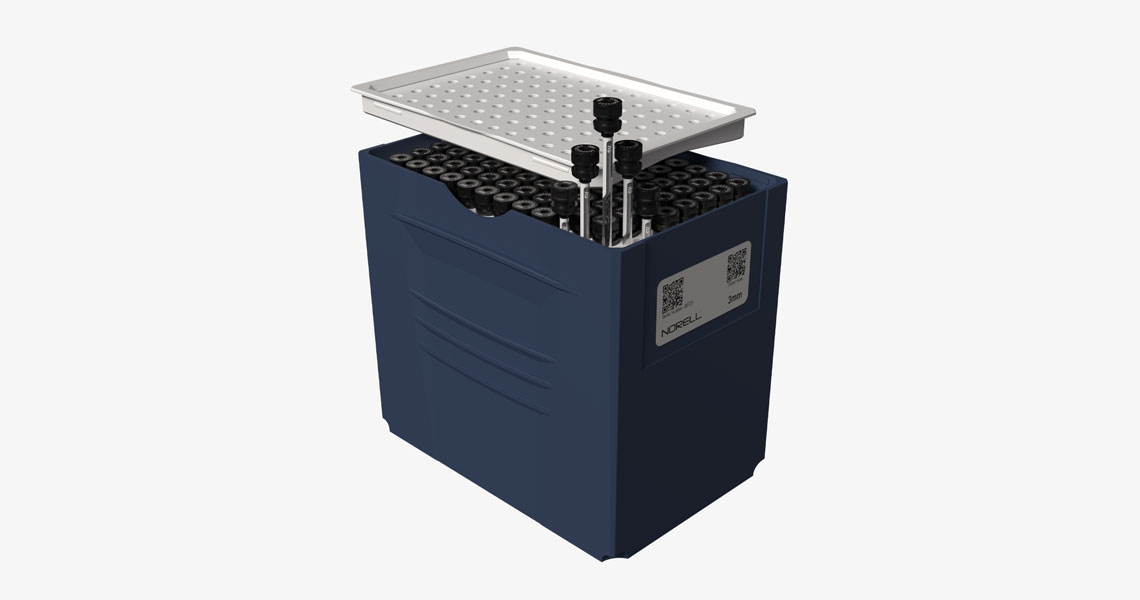

Our redesigned Sample Vault™ NMR Sample Tube Rack delivers dependable performance for high-throughput automation. Featuring an open-wall design, this rack has been laboratory tested to ensure seamless compatibility with Bruker SampleJet spectrometers.
Manufactured from high-strength, high-modulus biopolymer, the rack provides the durability and dimensional stability your automated workflows demand.

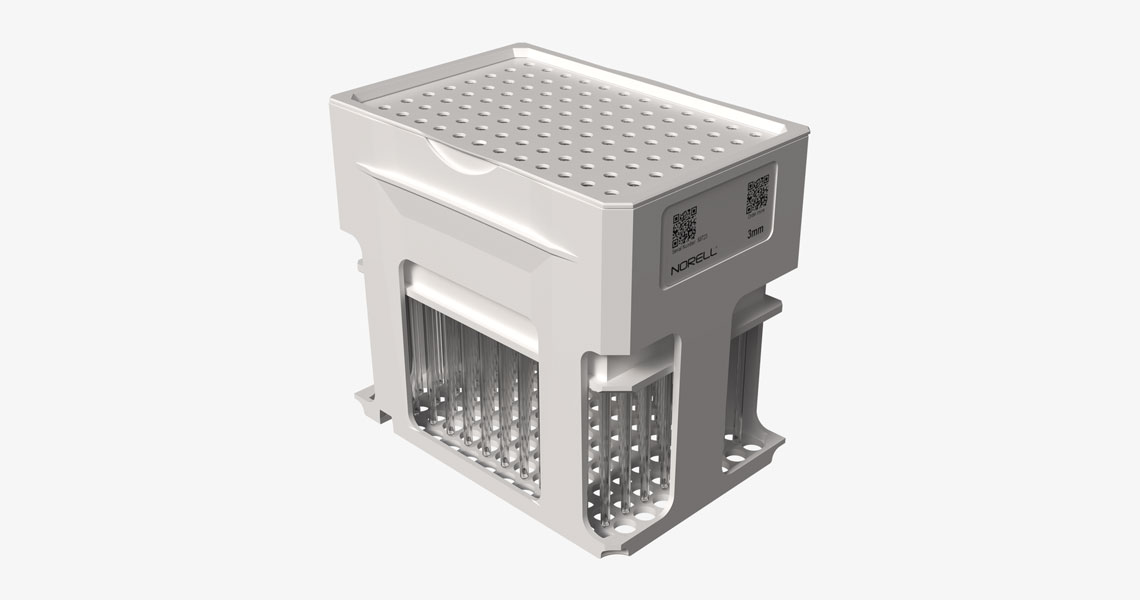

• Open-wall design provides a clear, 360° view of samples
• Laboratory tested for reliable Bruker SampleJet compatibility
• High-strength, high-modulus biopolymer construction

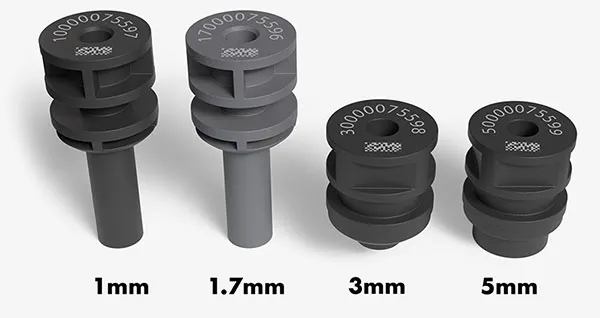

• Coded, open-port Sample Vault™ tube caps
• Available with 1 mm, 1.7 mm, 3 mm, and 5 mm NMR sample tubes
• Also available in closed-wall format
Item no.
MHz Rating
Cap Type
Cap Color
O.D.
Wall Size
Concentricity
Camber
Length
SVOP-5-103.5-96PK-O
Up to 900 MHz
Coded Option
Black
5 mm
0.38 mm
40 µm
60 µm
103.5 mm
SVOP-3-103.5-96PK-O
Up to 900 MHz
Coded Option
Black
3 mm
0.38 mm
40 µm
60 µm
103.5 mm
SVOP-1.7-103.5-96PK-O
Up to 900 MHz
Coded Option
Black
1.7 mm
0.20 mm
40 µm
60 µm
103.5 mm
SVOP-1-103.5-96K-O
Up to 900 MHz
Coded Option
Black
1 mm
0.10 mm
40 µm
60 µm
103.5 mm
SVOP-5-103.5-96PK-O Sample Vault Series NMR Tubes for Automated Systems, 5 mm O.D., 103.5 mm Length, Up to 900 MHz, 96/Pack, Includes OPEN PORT Sample Vault Caps
Item no:
SVOP-5-103.5-96PK-O
MHz:
Up to 900 MHz
Cap Type:
Coded Open
Cap Color:
Black
O.D. (mm):
5 mm
Wall Size (mm):
0.38
Concentricity:
40 µm
Camber:
60 µm
Length (mm):
103.5 mm
SVOP-3-103.5-96PK-O Sample Vault Series NMR Tubes for Automated Systems, 3 mm O.D., 103.5 mm Length, Up to 900 MHz, 96/Pack, Includes OPEN PORT Sample Vault Caps
Item no:
SVOP-5-103.5-96PK-O
MHz:
Up to 900 MHz
Cap Type:
Coded Open
Cap Color:
Black
O.D. (mm):
3 mm
Wall Size (mm):
0.38
Concentricity:
40 µm
Camber:
60 µm
Length (mm):
103.5 mm
SVOP-1.7-103.5-96PK-O Sample Vault Series NMR Tubes for Automated Systems, 1.7 mm O.D., 103.5 mm Length, Up to 900 MHz, 96/Pack, Includes OPEN PORT Sample Vault Caps
Item no:
SVOP-1.7-103.5-96PK-O
MHz:
Up to 900 MHz
Cap Type:
Coded Open
Cap Color:
Black
O.D. (mm):
5 mm
Wall Size (mm):
0.20
Concentricity:
40 µm
Camber:
60 µm
Length (mm):
103.5 mm
SVOP-1-103.5-96PK-O Sample Vault Series NMR Tubes for Automated Systems, 1 mm O.D., 103.5 mm Length, Up to 900 MHz, 96/Pack, Includes OPEN PORT Sample Vault Caps
Item no:
SVOP-1-103.5-96PK-O
MHz:
Up to 900 MHz
Cap Type:
Coded Open
Cap Color:
Black
O.D. (mm):
5 mm
Wall Size (mm):
0.10
Concentricity:
40 µm
Camber:
60 µm
Length (mm):
103.5 mm
SVOP-5-103.5-96PK
Up to 900 MHz
Coded Open
Black
5
mm
0.38
mm
40 μm
60 μm
103.5
mm
SVOP-3-103.5-96PK
Up to 900 MHz
Coded Open
Black
3
mm
0.38
mm
40 μm
60 μm
103.5
mm
SVOP-1.7-103.5-96PK
Up to 900 MHz
Coded Open
Black
1.7
mm
0.20
mm
40 μm
60 μm
103.5
mm
SVOP-1-103.5-96PK
Up to 900 MHz
Coded Open
Black
1
mm
0.10
mm
40 μm
60 μm
103.5
mm
SVOP-5-103.5 Sample Vault Series NMR Tubes For Automated Sample Tube System, 5 mm O.D., 103.55 mm Long, Up to 900 MHz, 96/Pack, Includes OPEN PORT Sample Vault Caps
Item no:
SVOP-5-103.5-96PK
MHz Rating:
Up to 900 MHz
Cap Type:
Coded Open
Cap Color:
Black
O.D. (mm):
5
mm
Wall Size (mm):
0.38
mm
Concentricity:
40 μm
Camber:
60 μm
Length (mm):
103.5
mm
SVOP-3-103.5 Sample Vault Series NMR Tubes For Automated Sample Tube System, 3 mm O.D., 103.5 mm Long, Up to 900 MHz, 96/Pack, Includes OPEN PORT Sample Vault Caps
Item no:
SVOP-3-103.5-96PK
MHz Rating:
Up to 900 MHz
Cap Type:
Coded Open
Cap Color:
Black
O.D. (mm):
3
mm
Wall Size (mm):
0.38
mm
Concentricity:
40 μm
Camber:
60 μm
Length (mm):
103.5
mm
SVOP-1.7-103.5 Sample Vault Series NMR Tubes For Automated Sample Tube System, 1.7 mm O.D., 103.5 mm Long, Up to 900 MHz, 96/Pack, Includes OPEN PORT Sample Vault Caps
Item no:
SVOP-1.7-103.5-96PK
MHz Rating:
Up to 900 MHz
Cap Type:
Coded Open
Cap Color:
Black
O.D. (mm):
1.7
mm
Wall Size (mm):
0.20
mm
Concentricity:
40 μm
Camber:
60 μm
Length (mm):
103.5
mm
SVOP-1-103.5 Sample Vault Series NMR Tubes For Automated Sample Tube System, 1 mm O.D., 103.5 mm Long, Up to 900 MHz, 96/Pack, Includes OPEN PORT Sample Vault Caps
Item no:
SVOP-1-103.5-96PK
MHz Rating:
Up to 900 MHz
Cap Type:
Coded Open
Cap Color:
Black
O.D. (mm):
1
mm
Wall Size (mm):
0.10
mm
Concentricity:
40 μm
Camber:
60 μm
Length (mm):
103.5
mm
