Designed for NMR studies involving chemically aggressive compounds such as hydrofluoric acid, ammonium bifluoride, and concentrated hydroxide solutions. These fluoropolymer tube liners feature thin-wall construction that minimizes filling-factor losses while providing excellent chemical resistance. Each liner is supplied with a PTFE plug closure.
TL-5-7
5
approx. 0.35ml
TL-10-7
10
approx. 2.00ml
TL-5-7 Fluoropolymer NMR Tube Liner, 5mm, 7" Long
Item no:
TL-5-7
Tube Size (mm):
5
Volume at 50mm:
approx. 0.35ml
TL-10-7 Fluoropolymer NMR Tube Liner, 10mm, 7" Long
Item no:
TL-10-7
Tube Size (mm):
10
Volume at 50mm:
approx. 2.00ml

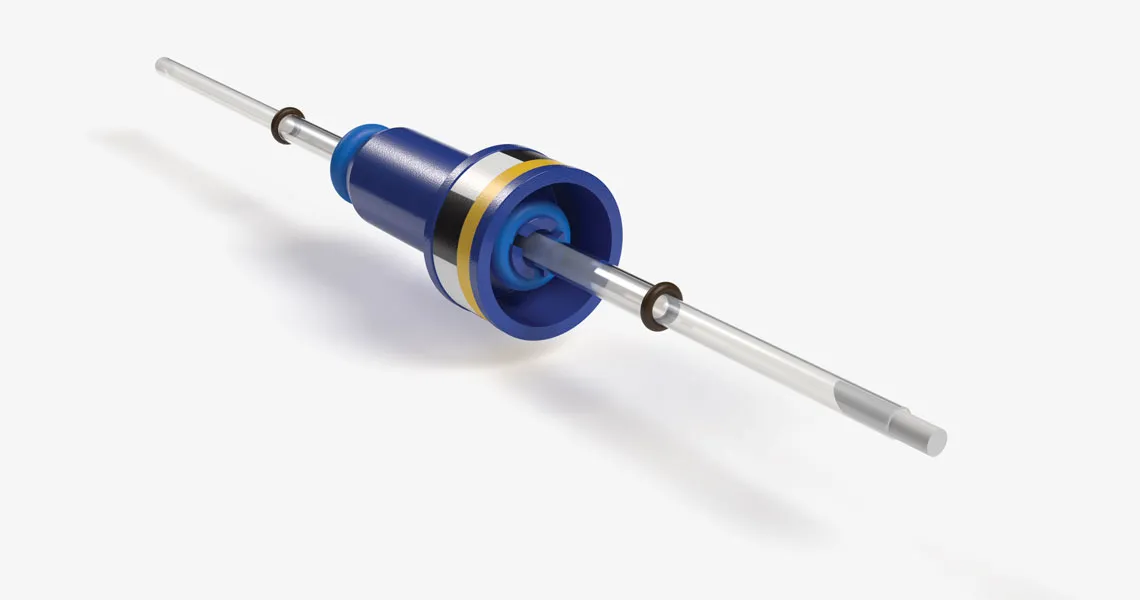

For silicon and boron NMR applications, we recommend using either the TL-5-TUBEKIT for 5 mm probes or the TL-10-TUBEKIT for 10 mm probes. Each kit is designed to be compatible with Varian, Bruker, or JEOL spinners, which serve as holding devices for the fluoropolymer liner. Since the probe detects only the fluoropolymer environment, these kits enable acquisition of high-quality ²9Si and ¹¹B spectra without interference from glass or other materials. Kit contains a short piece of 5mm O.D. open ended glass NMR tube and 2 fluoroelastomer o-rings. Spinner turbine not included with the Fluoropolymer Liner Tube Kit.
TL-5-TUBEKIT
two o-rings & one 5mm open-end tube
TL-10-TUBEKIT
two o-rings & one 10mm open-end tube
TL-5-TUBEKIT : 2 O-Rings, 1 Open-Ended 5mm Tube
Item no:
TL-5-TUBEKIT
Contents:
two o-rings & one 5mm open-end tube
TL-10-TUBEKIT : 2 O-Rings, 1 Open-Ended 10mm Tube
Item no:
TL-10-TUBEKIT
Contents:
two o-rings & one 10mm open-end tube
