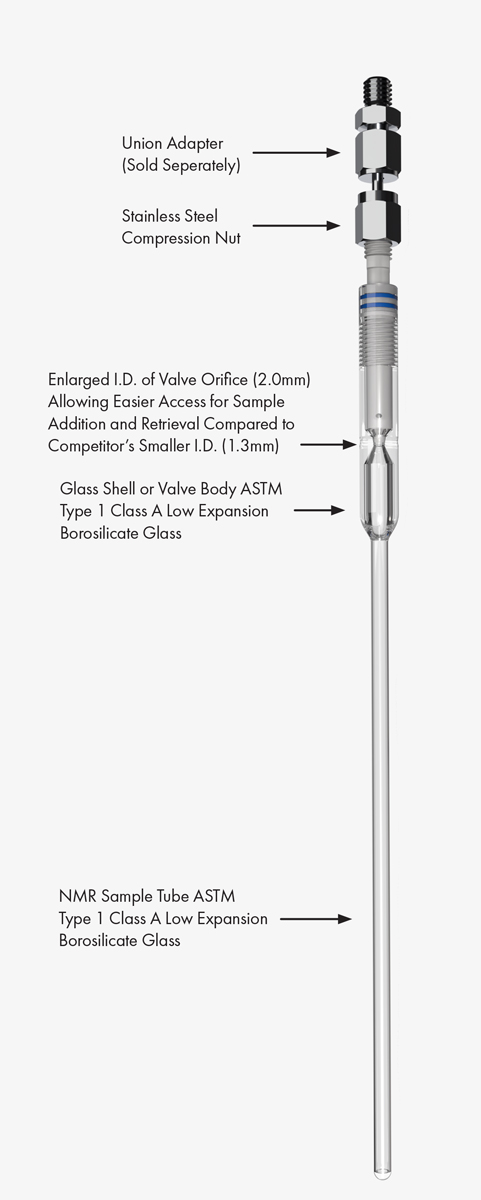

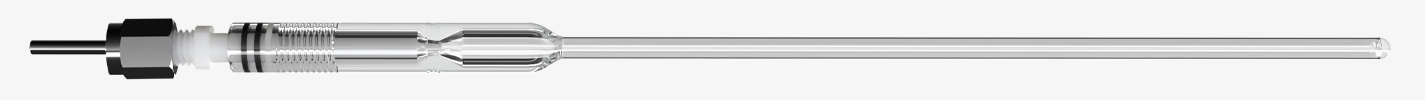

NORELL®, Inc is delighted to present the Extreme Series line of High Pressure Valved NMR Sample Tubes. The Extreme Series remains similar in function, use and pressure capability to the traditional High Pressure Valved NMR Sample Tubes, but the PTFE fluoropolymer valve plug has been upgraded and improved by changes to the design of the o-ring seal.
The Extreme Series line consists of two categories: Level 1 and Level 3. Each level incorporates a certain higher degree of valve seal integrity to guard against leakage or pressure loss due to o-ring failure caused by wear or other physical damage, and / or deterioration or damage caused by chemical exposure.
Kalrez® perfluoroelastomer is made from tetrafluoroethylene, and so is virtually chemically identical to PTFE fluoropolymer, but physically Kalrez® behaves as an elastomeric material, unlike PTFE, which is a much harder and inflexible polymer.
Kalrez® furnishes the same unsurpassed chemical resistance and degree of inertness as that of PTFE, while also affording a higher service temperature limit (up to 288°C compared to 260°C for PTFE) and no propensity to cold flow (or distort under a constant mechanical force or pressure).
Level 1 includes an additional standard fluoroelastomer o-ring seal to augment the existing fluoroelastomer o-ring, thus providing a secondary, backup o-ring if the primary one leaks or fails because of wear or physical damage.

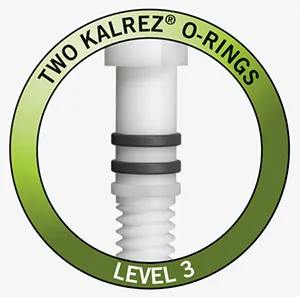

Level 3 incorporates additional chemical and solvent resistance over Level 1 and the traditional High Pressure Valved NMR Sample tubes, by the substitution of Kalrez® perfluoroelastomer o-ring(s) in place of the standard fluoroelastomer o-rings. Kalrez® perfluoroelastomer o-rings offer the ultimate level of physical and chemical resistance with the inclusion of a secondary, backup o-ring.
Due to the hand crafted nature of our pressure valves overall valve assembly length can vary slightly. A typical variance is 1-2mm. Overall length is based on a fully seated operating cap.
S-3-500-EX1-HPV-7
500
178
2.41 (46)
thin
960
9.6
140
S-3-500-EX1-HPV-8
500
203
2.41 (46)
thin
960
9.6
140
S-3-600-EX1-HPV-7
600
178
2.41 (46)
thin
960
9.6
140
S-3-600-EX1-HPV-8
600
203
2.41 (46)
thin
960
9.6
140
S-3-500 Extreme Series Level 1, Valved THIN Wall Tube for HIGH Pressure, 3mm, 500 MHz, 7", 1 Pack
Item no:
S-3-500-EX1-HPV-7
MHz:
500

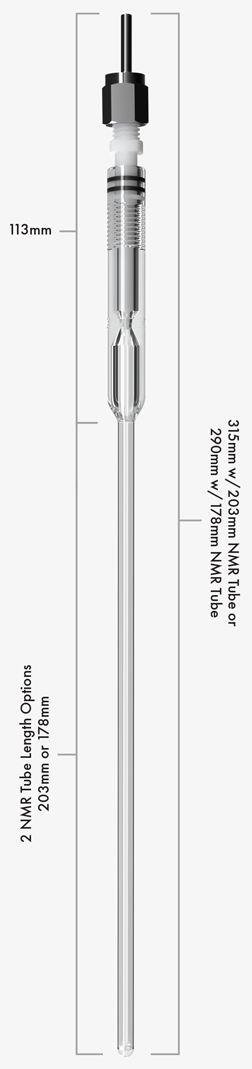

Tube Length (mm):
178
I.D. (mm)
(Volume μL/cm):
2.41 (46)
Tube Wall:
thin
Recommended kPa:
960
Maximum Operating
Pressure (bar):
9.6
Maximum Operating
Pressure (psi):
140
S-3-500 Extreme Series Level 1, Valved THIN Wall Tube for HIGH Pressure, 3mm, 500 MHz, 8", 1 Pack
Item no:
S-3-500-EX1-HPV-8
MHz:
500
Tube Length (mm):
203
I.D. (mm)
(Volume μL/cm):
2.41 (46)
Tube Wall:
thin
Recommended kPa:
960
Maximum Operating
Pressure (bar):
9.6
Maximum Operating
Pressure (psi):
140
S-3-600 Extreme Series Level 1, Valved THIN Wall Tube for HIGH Pressure, 3mm, 600 MHz, 7", 1 Pack
Item no:
S-3-600-EX1-HPV-7
MHz:
600
Tube Length (mm):
178
I.D. (mm)
(Volume μL/cm):
2.41 (46)
Tube Wall:
thin
Recommended kPa:
960
Maximum Operating
Pressure (bar):
9.6
Maximum Operating
Pressure (psi):
140
S-3-600 Extreme Series Level 1, Valved THIN Wall Tube for HIGH Pressure, 3mm, 600 MHz, 8", 1 Pack
Item no:
S-3-600-EX1-HPV-8
MHz:
600
Tube Length (mm):
203
I.D. (mm)
(Volume μL/cm):
2.41 (46)
Tube Wall:
thin
Recommended kPa:
960
Maximum Operating
Pressure (bar):
9.6
Maximum Operating
Pressure (psi):
140
S-5-500-EX1-HPV-7
500
178
4.20 (138)
thin
700
7
100
S-5-500-MW-EX1-HPV-7
500
178
3.43 (92)
medium
1050
10.5
150
S-5-500-HW-EX1-HPV-7
500
178
2.20 (38)
heavy
1400
14
200
S-5-500-EX1-HPV-8
500
203
4.20 (138)
thin
700
7
100
S-5-500-MW-EX1-HPV-8
500
203
3.43 (92)
medium
1050
10.5
150
S-5-500-HW-EX1-HPV-8
500
203
2.20 (38)
heavy
1400
14
200
S-5-600-EX1-HPV-7
600
178
4.20 (138)
thin
700
7
100
S-5-600-MW-EX1-HPV-7
600
178
3.43 (92)
medium
1050
10.5
150
S-5-600-HW-EX1-HPV-7
600
178
2.20 (38)
heavy
1400
14
200
S-5-600-EX1-HPV-8
600
203
4.20 (138)
thin
700
7
100
S-5-600-MW-EX1-HPV-8
600
203
3.43 (92)
medium
1050
10.5
150
S-5-600-HW-EX1-HPV-8
600
203
2.20 (38)
heavy
1400
14
200
S-5-800-EX1-HPV-7
800
178
4.20 (138)
thin
700
7
100
S-5-800-MW-EX1-HPV-7
800
178
3.43 (92)
medium
1050
10.5
150
S-5-800-HW-EX1-HPV-7
800
178
2.20 (38)
heavy
1400
14
200
S-5-800-EX1-HPV-8
800
203
4.20 (138)
thin
700
7
100
S-5-800-MW-EX1-HPV-8
800
203
3.43 (92)
medium
1050
10.5
150
S-5-800-HW-EX1-HPV-8
800
203
2.20 (38)
heavy
1400
14
200
S-5-500 Extreme Series Level 1, Valved THIN Wall Tube for HIGH Pressure, 5mm, 500 MHz, 7", 1/Pack
Item no:
S-5-500-EX1-HPV-7
MHz:
500
Tube Length (mm):
178
I.D. (mm)
(Volume μL/cm):
4.20 (138)
Tube Wall:
thin
Recommended kPa:
700
Maximum Operating
Pressure (bar):
7
Maximum Operating
Pressure (psi):
100
S-5-500 Extreme Series Level 1, Valved MEDIUM Wall Tube for HIGH Pressure, 5mm, 500 MHz, 7", 1/Pack
Item no:
S-5-500-MW-EX1-HPV-7
MHz:
500
Tube Length (mm):
178
I.D. (mm)
(Volume μL/cm):
3.43 (92)
Tube Wall:
medium
Recommended kPa:
1050
Maximum Operating
Pressure (bar):
10.5
Maximum Operating
Pressure (psi):
150
S-5-500 Extreme Series Level 1, Valved HEAVY Wall Tube for HIGH Pressure, 5mm, 500 MHz, 7", 1/Pack
Item no:
S-5-500-HW-EX1-HPV-7
MHz:
500
Tube Length (mm):
178
I.D. (mm)
(Volume μL/cm):
2.20 (38)
Tube Wall:
heavy
Recommended kPa:
1400
Maximum Operating
Pressure (bar):
14
Maximum Operating
Pressure (psi):
200
S-5-500 Extreme Series Level 1, Valved THIN Wall Tube for HIGH Pressure, 5mm, 500 MHz, 8", 1/Pack
Item no:
S-5-500-EX1-HPV-8
MHz:
500
Tube Length (mm):
203
I.D. (mm)
(Volume μL/cm):
4.20 (138)
Tube Wall:
thin
Recommended kPa:
700
Maximum Operating
Pressure (bar):
7
Maximum Operating
Pressure (psi):
100
S-5-500 Extreme Series Level 1, Valved MEDIUM Wall Tube for HIGH Pressure, 5mm, 500 MHz, 8", 1/Pack
Item no:
S-5-500-MW-EX1-HPV-8
MHz:
500
Tube Length (mm):
203
I.D. (mm)
(Volume μL/cm):
3.43 (92)
Tube Wall:
medium
Recommended kPa:
1050
Maximum Operating
Pressure (bar):
10.5
Maximum Operating
Pressure (psi):
150
S-5-500 Extreme Series Level 1, Valved HEAVY Wall Tube for HIGH Pressure, 5mm, 500 MHz, 8", 1/Pack
Item no:
S-5-500-HW-EX1-HPV-8
MHz:
500
Tube Length (mm):
203
I.D. (mm)
(Volume μL/cm):
2.20 (38)
Tube Wall:
heavy
Recommended kPa:
1400
Maximum Operating
Pressure (bar):
14
Maximum Operating
Pressure (psi):
200
S-5-600 Extreme Series Level 1, Valved THIN Wall Tube for HIGH Pressure, 5mm, 600 MHz, 7", 1/Pack
Item no:
S-5-600-EX1-HPV-7
MHz:
600
Tube Length (mm):
178
I.D. (mm)
(Volume μL/cm):
4.20 (138)
Tube Wall:
thin
Recommended kPa:
700
Maximum Operating
Pressure (bar):
7
Maximum Operating
Pressure (psi):
100
S-5-600 Extreme Series Level 1, Valved MEDIUM Wall Tube for HIGH Pressure, 5mm, 600 MHz, 7", 1/Pack
Item no:
S-5-600-MW-EX1-HPV-7
MHz:
600
Tube Length (mm):
178
I.D. (mm)
(Volume μL/cm):
3.43 (92)
Tube Wall:
medium
Recommended kPa:
1050
Maximum Operating
Pressure (bar):
10.5
Maximum Operating
Pressure (psi):
150
S-5-600 Extreme Series Level 1, Valved HEAVY Wall Tube for HIGH Pressure, 5mm, 600 MHz, 7", 1/Pack
Item no:
S-5-600-HW-EX1-HPV-7
MHz:
600
Tube Length (mm):
178
I.D. (mm)
(Volume μL/cm):
2.20 (38)
Tube Wall:
heavy
Recommended kPa:
1400
Maximum Operating
Pressure (bar):
14
Maximum Operating
Pressure (psi):
200
S-5-600 Extreme Series Level 1, Valved THIN Wall Tube for HIGH Pressure, 5mm, 600 MHz, 8", 1/Pack
Item no:
S-5-600-EX1-HPV-8
MHz:
600
Tube Length (mm):
203
I.D. (mm)
(Volume μL/cm):
4.20 (138)
Tube Wall:
thin
Recommended kPa:
700
Maximum Operating
Pressure (bar):
7
Maximum Operating
Pressure (psi):
100
S-5-600 Extreme Series Level 1, Valved MEDIUM Wall Tube for HIGH Pressure, 5mm, 600 MHz, 8", 1/Pack
Item no:
S-5-600-MW-EX1-HPV-8
MHz:
600
Tube Length (mm):
203
I.D. (mm)
(Volume μL/cm):
3.43 (92)
Tube Wall:
medium
Recommended kPa:
1050
Maximum Operating
Pressure (bar):
10.5
Maximum Operating
Pressure (psi):
150
S-5-600 Extreme Series Level 1, Valved HEAVY Wall Tube for HIGH Pressure, 5mm, 600 MHz, 8", 1/Pack
Item no:
S-5-600-HW-EX1-HPV-8
MHz:
600
Tube Length (mm):
203
I.D. (mm)
(Volume μL/cm):
2.20 (38)
Tube Wall:
heavy
Recommended kPa:
1400
Maximum Operating
Pressure (bar):
14
Maximum Operating
Pressure (psi):
200
S-5-800 Extreme Series Level 1, Valved THIN Wall Tube for HIGH Pressure, 5mm, 800 MHz, 7", 1/Pack
Item no:
S-5-800-EX1-HPV-7
MHz:
800
Tube Length (mm):
178
I.D. (mm)
(Volume μL/cm):
4.20 (138)
Tube Wall:
thin
Recommended kPa:
700
Maximum Operating
Pressure (bar):
7
Maximum Operating
Pressure (psi):
100
S-5-800 Extreme Series Level 1, Valved MEDIUM Wall Tube for HIGH Pressure, 5mm, 800 MHz, 7", 1/Pack
Item no:
S-5-800-MW-EX1-HPV-7
MHz:
800
Tube Length (mm):
178
I.D. (mm)
(Volume μL/cm):
3.43 (92)
Tube Wall:
medium
Recommended kPa:
1050
Maximum Operating
Pressure (bar):
10.5
Maximum Operating
Pressure (psi):
150
S-5-800 Extreme Series Level 1, Valved HEAVY Wall Tube for HIGH Pressure, 5mm, 800 MHz, 7", 1/Pack
Item no:
S-5-800-HW-EX1-HPV-7
MHz:
800
Tube Length (mm):
178
I.D. (mm)
(Volume μL/cm):
2.20 (38)
Tube Wall:
heavy
Recommended kPa:
1400
Maximum Operating
Pressure (bar):
14
Maximum Operating
Pressure (psi):
200
S-5-800 Extreme Series Level 1, Valved THIN Wall Tube for HIGH Pressure, 5mm, 800 MHz, 8", 1/Pack
Item no:
S-5-800-EX1-HPV-8
MHz:
800
Tube Length (mm):
203
I.D. (mm)
(Volume μL/cm):
4.20 (138)
Tube Wall:
thin
Recommended kPa:
700
Maximum Operating
Pressure (bar):
7
Maximum Operating
Pressure (psi):
100
S-5-800 Extreme Series Level 1, Valved MEDIUM Wall Tube for HIGH Pressure, 5mm, 800 MHz, 8", 1/Pack
Item no:
S-5-800-MW-EX1-HPV-8
MHz:
800
Tube Length (mm):
203
I.D. (mm)
(Volume μL/cm):
3.43 (92)
Tube Wall:
medium
Recommended kPa:
1050
Maximum Operating
Pressure (bar):
10.5
Maximum Operating
Pressure (psi):
150
S-5-800 Extreme Series Level 1, Valved HEAVY Wall Tube for HIGH Pressure, 5mm, 800 MHz, 8", 1/Pack
Item no:
S-5-800-HW-EX1-HPV-8
MHz:
800
Tube Length (mm):
203
I.D. (mm)
(Volume μL/cm):
2.20 (38)
Tube Wall:
heavy
Recommended kPa:
1400
Maximum Operating
Pressure (bar):
14
Maximum Operating
Pressure (psi):
200
S-5-500-HPV-EX1-UTW-7, Ultra-Thin Series Valved NMR Tubes, 500 MHz, 5mm, 7", 500 kPa, 5 bar, 73 psi
Item no:
S-5-500-HPV-EX1-UTW-7
Diameter:
5
MHz:
500
Length (mm):
178
S-5-500-HPV-EX1-UTW-8, Ultra-Thin Series Valved NMR Tubes, 500 MHz, 5mm, 8", 500 kPa, 5 bar, 73 psi
Item no:
S-5-500-HPV-EX1-UTW-8
Diameter:
5
MHz:
500
Length (mm):
203
S-5-600-HPV-EX1-UTW-7, Ultra-Thin Series Valved NMR Tubes, 600 MHz, 5mm, 8", 500 kPa, 5 bar, 73 psi
Item no:
S-5-600-HPV-EX1-UTW-7
Diameter:
5
MHz:
600
Length (mm):
178
S-5-600-HPV-EX1-UTW-8, Ultra-Thin Series Valved NMR Tubes, 600 MHz, 5mm, 8", 500 kPa, 5 bar, 73 psi
Item no:
S-5-600-HPV-EX1-UTW-8
Diameter:
5
MHz:
600
Length (mm):
203
Item No.
MHz
Tube Length (mm)
I.D.
(mm)
Tube Wall
Recommended
kPa
Maximum
Operating
Pressure (bar)
Maximum
Operating
Pressure (psi)
S-5-500-HPV-EX1-UTW-7
500
178
4.39 (144)
Ultra-Thin
500
5
73
S-5-500-HPV-EX1-UTW-8
500
203
4.39 (144)
Ultra-Thin
500
5
73
S-5-600-HPV-EX1-UTW-7
600
178
4.39 (144)
Ultra-Thin
500
5
73
S-5-600-HPV-EX1-UTW-8
600
203
4.39 (144)
Ultra-Thin
500
5
73
S-3-500 Extreme Series Level 3, Valved THIN Wall Tube for HIGH Pressure, 3mm, 500 MHz, 7", 1/Pack
Item no:
S-3-500-HPV-EX3-7
Diameter:
3
MHz:
500
Length (mm):
178
S-3-500 Extreme Series Level 3, Valved THIN Wall Tube for HIGH Pressure, 3mm, 500 MHz, 8", 1/Pack
Item no:
S-3-500-HPV-EX3-8
Diameter:
3
MHz:
500
Length (mm):
203
S-3-500 Extreme Series Level 3, Valved THIN Wall Tube for HIGH Pressure, 3mm, 600 MHz, 7", 1/Pack
Item no:
S-3-600-HPV-EX1-7
Diameter:
3
MHz:
600
Length (mm):
178
S-3-500 Extreme Series Level 3, Valved THIN Wall Tube for HIGH Pressure, 3mm, 600 MHz, 8", 1/Pack
Item no:
S-3-600-HPV-EX1-8
Diameter:
3
MHz:
600
Length (mm):
203
Item No.
MHz
Tube Length (mm)
I.D.
(mm)
Tube Wall
Recommended
kPa
Maximum
Operating
Pressure (bar)
Maximum
Operating
Pressure (psi)
S-3-500-EX3-HPV-7
500
178
2.41 (46)
Thin
960
9.6
140
S-3-500-EX3-HPV-8
500
203
2.41 (46)
Thin
960
9.6
140
S-3-600-EX3-HPV-7
600
178
2.41 (46)
Thin
960
9.6
140
S-3-600-EX3-HPV-8
600
203
2.41 (46)
Thin
960
9.6
140
S-5-500-EX3-HPV-7
500
178
4.20 (138)
thin
700
7
100
S-5-500-MW-EX3-HPV-7
500
178
3.43 (92)
medium
1050
10.5
150
S-5-500-HW-EX3-HPV-7
500
178
2.20 (38)
heavy
1400
14
200
S-5-500-EX3-HPV-8
500
203
4.20 (138)
thin
700
7
100
S-5-500-MW-EX3-HPV-8
500
203
3.43 (92)
medium
1050
10.5
150
S-5-500-HW-EX3-HPV-8
500
203
2.20 (38)
heavy
1400
14
200
S-5-600-EX3-HPV-7
600
178
4.20 (138)
thin
700
7
100
S-5-600-MW-EX3-HPV-7
600
178
3.43 (92)
medium
1050
10.5
150
S-5-600-HW-EX3-HPV-7
600
178
2.20 (38)
heavy
1400
14
200
S-5-600-EX3-HPV-8
600
203
4.20 (138)
thin
700
7
100
S-5-600-MW-EX3-HPV-8
600
203
3.43 (92)
medium
1050
10.5
150
S-5-600-HW-EX3-HPV-8
600
203
2.20 (38)
heavy
1400
14
200
S-5-800-EX3-HPV-7
800
178
4.20 (138)
thin
700
7
100
S-5-800-MW-EX3-HPV-7
800
178
3.43 (92)
medium
1050
10.5
150
S-5-800-HW-EX3-HPV-7
800
178
2.20 (38)
heavy
1400
14
200
S-5-800-EX3-HPV-8
800
203
4.20 (138)
thin
700
7
100
S-5-800-MW-EX3-HPV-8
800
203
3.43 (92)
medium
1050
10.5
150
S-5-800-HW-EX3-HPV-8
800
203
2.20 (38)
heavy
1400
14
200
S-5-500 Extreme Series Level 3, Valved THIN Wall Tube for HIGH Pressure, 5mm, 500 MHz, 7", 1/Pack
Item no:
S-5-500-EX3-HPV-7
MHz:
500
Tube Length (mm):
178
I.D. (mm)
(Volume μL/cm):
4.20 (138)
Tube Wall:
thin
Recommended kPa:
700
Maximum Operating
Pressure (bar):
7
Maximum Operating
Pressure (psi):
100
S-5-500 Extreme Series Level 3, Valved MEDIUM Wall Tube for HIGH Pressure, 5mm, 500 MHz, 7", 1/Pack
Item no:
S-5-500-MW-EX3-HPV-7
MHz:
500
Tube Length (mm):
178
I.D. (mm)
(Volume μL/cm):
3.43 (92)
Tube Wall:
medium
Recommended kPa:
1050
Maximum Operating
Pressure (bar):
10.5
Maximum Operating
Pressure (psi):
150
S-5-500 Extreme Series Level 3, Valved HEAVY Wall Tube for HIGH Pressure, 5mm, 500 MHz, 7", 1/Pack
Item no:
S-5-500-HW-EX3-HPV-7
MHz:
500
Tube Length (mm):
178
I.D. (mm)
(Volume μL/cm):
2.20 (38)
Tube Wall:
heavy
Recommended kPa:
1400
Maximum Operating
Pressure (bar):
14
Maximum Operating
Pressure (psi):
200
S-5-500 Extreme Series Level 3, Valved THIN Wall Tube for HIGH Pressure, 5mm, 500 MHz, 8", 1/Pack
Item no:
S-5-500-EX3-HPV-8
MHz:
500
Tube Length (mm):
203
I.D. (mm)
(Volume μL/cm):
4.20 (138)
Tube Wall:
thin
Recommended kPa:
700
Maximum Operating
Pressure (bar):
7
Maximum Operating
Pressure (psi):
100
S-5-500 Extreme Series Level 3, Valved MEDIUM Wall Tube for HIGH Pressure, 5mm, 500 MHz, 8", 1/Pack
Item no:
S-5-500-MW-EX3-HPV-8
MHz:
500
Tube Length (mm):
203
I.D. (mm)
(Volume μL/cm):
3.43 (92)
Tube Wall:
medium
Recommended kPa:
1050
Maximum Operating
Pressure (bar):
10.5
Maximum Operating
Pressure (psi):
150
S-5-500 Extreme Series Level 3, Valved HEAVY Wall Tube for HIGH Pressure, 5mm, 500 MHz, 8", 1/Pack
Item no:
S-5-500-HW-EX3-HPV-8
MHz:
500
Tube Length (mm):
203
I.D. (mm)
(Volume μL/cm):
2.20 (38)
Tube Wall:
heavy
Recommended kPa:
1400
Maximum Operating
Pressure (bar):
14
Maximum Operating
Pressure (psi):
200
S-5-600 Extreme Series Level 3, Valved THIN Wall Tube for HIGH Pressure, 5mm, 600 MHz, 7", 1/Pack
Item no:
S-5-600-EX3-HPV-7
MHz:
600
Tube Length (mm):
178
I.D. (mm)
(Volume μL/cm):
4.20 (138)
Tube Wall:
thin
Recommended kPa:
700
Maximum Operating
Pressure (bar):
7
Maximum Operating
Pressure (psi):
100
S-5-600 Extreme Series Level 3, Valved MEDIUM Wall Tube for HIGH Pressure, 5mm, 600 MHz, 7", 1/Pack
Item no:
S-5-600-MW-EX3-HPV-7
MHz:
600
Tube Length (mm):
178
I.D. (mm)
(Volume μL/cm):
3.43 (92)
Tube Wall:
medium
Recommended kPa:
1050
Maximum Operating
Pressure (bar):
10.5
Maximum Operating
Pressure (psi):
150
S-5-600 Extreme Series Level 3, Valved HEAVY Wall Tube for HIGH Pressure, 5mm, 600 MHz, 7", 1/Pack
Item no:
S-5-600-HW-EX3-HPV-7
MHz:
600
Tube Length (mm):
178
I.D. (mm)
(Volume μL/cm):
2.20 (38)
Tube Wall:
heavy
Recommended kPa:
1400
Maximum Operating
Pressure (bar):
14
Maximum Operating
Pressure (psi):
200
S-5-600 Extreme Series Level 3, Valved THIN Wall Tube for HIGH Pressure, 5mm, 600 MHz, 8", 1/Pack
Item no:
S-5-600-EX3-HPV-8
MHz:
600
Tube Length (mm):
203
I.D. (mm)
(Volume μL/cm):
4.20 (138)
Tube Wall:
thin
Recommended kPa:
700
Maximum Operating
Pressure (bar):
7
Maximum Operating
Pressure (psi):
100
S-5-600 Extreme Series Level 3, Valved MEDIUM Wall Tube for HIGH Pressure, 5mm, 600 MHz, 8", 1/Pack
Item no:
S-5-600-MW-EX3-HPV-8
MHz:
600
Tube Length (mm):
203
I.D. (mm)
(Volume μL/cm):
3.43 (92)
Tube Wall:
medium
Recommended kPa:
1050
Maximum Operating
Pressure (bar):
10.5
Maximum Operating
Pressure (psi):
150
S-5-600 Extreme Series Level 3, Valved HEAVY Wall Tube for HIGH Pressure, 5mm, 600 MHz, 8", 1/Pack
Item no:
S-5-600-HW-EX3-HPV-8
MHz:
600
Tube Length (mm):
203
I.D. (mm)
(Volume μL/cm):
2.20 (38)
Tube Wall:
heavy
Recommended kPa:
1400
Maximum Operating
Pressure (bar):
14
Maximum Operating
Pressure (psi):
200
S-5-800 Extreme Series Level 3, Valved THIN Wall Tube for HIGH Pressure, 5mm, 800 MHz, 7", 1/Pack
Item no:
S-5-800-EX3-HPV-7
MHz:
800
Tube Length (mm):
178
I.D. (mm)
(Volume μL/cm):
4.20 (138)
Tube Wall:
thin
Recommended kPa:
700
Maximum Operating
Pressure (bar):
7
Maximum Operating
Pressure (psi):
100
S-5-800 Extreme Series Level 3, Valved MEDIUM Wall Tube for HIGH Pressure, 5mm, 800 MHz, 7", 1/Pack
Item no:
S-5-800-MW-EX3-HPV-7
MHz:
800
Tube Length (mm):
178
I.D. (mm)
(Volume μL/cm):
3.43 (92)
Tube Wall:
medium
Recommended kPa:
1050
Maximum Operating
Pressure (bar):
10.5
Maximum Operating
Pressure (psi):
150
S-5-800 Extreme Series Level 3, Valved HEAVY Wall Tube for HIGH Pressure, 5mm, 800 MHz, 7", 1/Pack
Item no:
S-5-800-HW-EX3-HPV-7
MHz:
800
Tube Length (mm):
178
I.D. (mm)
(Volume μL/cm):
2.20 (38)
Tube Wall:
heavy
Recommended kPa:
1400
Maximum Operating
Pressure (bar):
14
Maximum Operating
Pressure (psi):
200
S-5-800 Extreme Series Level 3, Valved THIN Wall Tube for HIGH Pressure, 5mm, 800 MHz, 8", 1/Pack
Item no:
S-5-800-EX3-HPV-8
MHz:
800
Tube Length (mm):
203
I.D. (mm)
(Volume μL/cm):
4.20 (138)
Tube Wall:
thin
Recommended kPa:
700
Maximum Operating
Pressure (bar):
7
Maximum Operating
Pressure (psi):
100
S-5-800 Extreme Series Level 3, Valved MEDIUM Wall Tube for HIGH Pressure, 5mm, 800 MHz, 8", 1/Pack
Item no:
S-5-800-MW-EX3-HPV-8
MHz:
800
Tube Length (mm):
203
I.D. (mm)
(Volume μL/cm):
3.43 (92)
Tube Wall:
medium
Recommended kPa:
1050
Maximum Operating
Pressure (bar):
10.5
Maximum Operating
Pressure (psi):
150
S-5-800 Extreme Series Level 3, Valved HEAVY Wall Tube for HIGH Pressure, 5mm, 800 MHz, 8", 1/Pack
Item no:
S-5-800-HW-EX3-HPV-8
MHz:
800
Tube Length (mm):
203
I.D. (mm)
(Volume μL/cm):
2.20 (38)
Tube Wall:
heavy
Recommended kPa:
1400
Maximum Operating
Pressure (bar):
14
Maximum Operating
Pressure (psi):
200
Item No.
MHz
Tube Length (mm)
I.D.
(mm)
Tube Wall
Recommended
kPa
Maximum
Operating
Pressure (bar)
Maximum
Operating
Pressure (psi)
S-5-500-HPV-EX3-UTW-7
500
178
4.39 (144)
Ultra-Thin
500
5
73
S-5-500-HPV-EX3-UTW-8
500
203
4.39 (144)
Ultra-Thin
500
5
73
S-5-600-HPV-EX3-UTW-7
600
178
4.39 (144)
Ultra-Thin
500
5
73
S-5-600-HPV-EX3-UTW-8
600
203
4.39 (144)
Ultra-Thin
500
5
73
S-5-500-HPV-EX3-UTW-7, Ultra-Thin Series Valved NMR Tubes, 500 MHz, 5mm, 7", 500 kPa, 5 bar, 73 psi, 1/Pack
Item no:
S-5-500-HPV-EX3-UTW-7
Diameter:
5
MHz:
500
Length (mm):
178
S-5-500-HPV-EX3-UTW-8, Ultra-Thin Series Valved NMR Tubes, 500 MHz, 5mm, 8", 500 kPa, 5 bar, 73 psi, 1/Pack
Item no:
S-5-500-HPV-EX3-UTW-UTW-8
Diameter:
5
MHz:
500
Length (mm):
203
S-5-600-HPV-EX3-UTW-7, Ultra-Thin Series Valved NMR Tubes, 600 MHz, 5mm, 7", 500 kPa, 5 bar, 73 psi, 1/Pack
Item no:
S-5-600-HPV-EX3-UTW-7
Diameter:
5
MHz:
600
Length (mm):
178
S-5-600-HPV-EX3-UTW-8, Ultra-Thin Series Valved NMR Tubes, 600 MHz, 5mm, 8", 500 kPa, 5 bar, 73 psi, 1/Pack
Item no:
S-5-600-HPV-EX3-UTW-8
Diameter:
5
MHz:
600
Length (mm):
203
HPV-1/8X1/8-UNION
Optional Union Adapter, Type 316 Stainless Steel, for 1/8" metallic double ferrule line termination
HPV-1/4-WRENCH
1/4" double open-end, 15° and 75° angled openings, forged steel
Optional Union Adapter
Item no:
HPV-1/8X1/8-UNION
Description:
Optional Union Adapter, Type 316 Stainless Steel, for 1/8" metallic double ferrule line termination
Wrench
Item no:
HPV-1/4-WRENCH
Description:
1/4" double open-end, 15° and 75° angled openings, forged steel
3mm & 5mm valved NMR tubes for vacuum & reduced pressure. Handle your NMR sample without flame-sealing your tubes. Fluoropolymer covered o-ring eliminates material incompatibilities. Completely greaseless fluoropolymer assembly, which is easy to use and to disassemble for cleaning. Includes female joint for quick attachment to your vacuum rack.
Learn More
Featuring a glass/ PTFE pressure valve permanently joined to your choice of a wide selection of available 5mm O.D. sample tubes.
These pressure tubes facilitate experiments requiring conditions such as pressurized inert atmosphere blanketing, addition of reactive gaseous reagents under pressure, containment of low boiling point solvents or samples at elevated temperatures, and so on.
